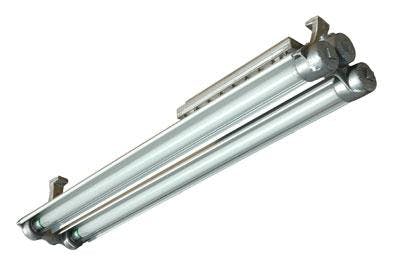

The Magnalight EPL-48-2L-220V Explosion Proof Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 1 and Class 1 Division 2 for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist. The unit carries a T6 temperature rating, it is also approved for Paint Spray Booths.
The EPL-48-2L-220V fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 1 and Class 2 Division 1&2 explosion proof fluorescent light which is also approved for use in paint spray booth applications. This T6 temperature rated fixture comes standard with two fluorescent lamps. Lamp choices include T5HO, T12HO, and T8. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish.This fixture is multi-voltage capable and is available with a variety of lamp options. The EPL-48-2L-220V provides operators in hazardous locations with a reliable and affordable lighting solution that provides the best explosion proof protection available without sacrificing light quality or fixture durability.| EPL-48-2L-220V Explosion Proof | U.L. Ratings |
| UL Listing: United States - Canada | Class 1 Division 1, Groups C and D |
| Dimensions: W-11.25" L-52" H-8.5 " | Class 1 Division 2, Group A,B,C,D |
| Weight: 65 Lbs | UL 595 Outdoor Marine Type (Saltwater) |
| Total Watts: 108watts* | UL 844, 924 |
| Voltage: 220V 50/60 Hz (Universal 120V-277V) | UL 1598 Marine Type |
| Total Lumens: STD-T5-HO Bulbs 10,000 | Class II Division 1 and 2, Groups E,F,G |
| Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours | UL Certified Canadian Standards |
| Efficiency: STD-T5-HO Bulbs 92 Lumens per Watt | UL listed for Paint Spray Booths* |
| Ambient Operating Temp Range: -20 C to 70 C* Operating Temp Rating: T6 Rated Minimum Operating Temp: -30 C Maximum Case Temp: 90 C | |
| Beam Angle: N/A | Special Orders- Requirements |
| Color Temp: varies with bulb choice | Contact us for special requirements |
| Mounting: Surface Standard - Pendant Optional | |
| Wiring Hub: 1/2 inch threaded | |
| U.L Approval: U.S Certificate Canada Certificate | |
| *Substitution of included standard bulbs for higher output lamps may affect paint spray booth approval. | |
| *Temperatures above 65 degrees C will diminish ballast life from 5 years to 3 years) *5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement. |
