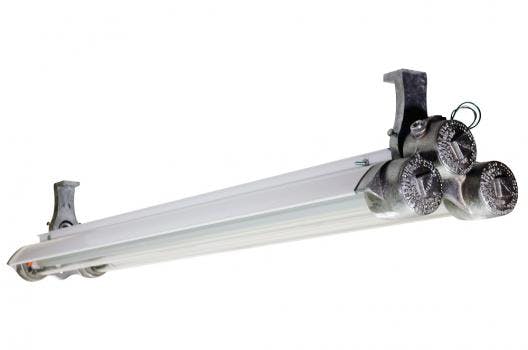

The Magnalight EPL-48-2L-LED-LV 12 / 24 Volt Explosion Proof LED Light Fixture is U.S./Canada U.L. approved Class 1 Division 1, Class II Division I, and is UL 844 certified for use within oil rigs, paint spray booths and other hazardous location areas. This unit has a T6 temperature rating and carries a paint spray booth certification.
The EPL-48-2L-LED-LV is designed to use Magnalight’s specially constructed 12/24 volt LED T-series bulbs which produce 15% more foot candles of illumination at 8 feet as compared to standard T8 lamps and is UL 844 certified Class 1 Division 1 and Class II Division 1. This low voltage fixture can operate on 12 or 24 volts AC or DC. This makes it useful in remote applications where battery banks are used or where OSHA or internal safety standards mandate low voltage lighting. Our LED-T series bulbs are visibly brighter than standard T8s and consistently surprise many of our customers with their unexpectedly high light output levels.
We have replaced two 8 foot dual lamp T8 fixtures in our own facility with our LED T series lamps and produced more illumination in the work area with only one 2 lamp 4 foot long LED fixture. We now offer our second generation LED tube lamps with this fixture which have increased this unit’s performance.
| EPL-48-2L-LED-LV Explosion Proof | U.L. Ratings |
| UL Listing: United States - Canada | Class 1 Division 1, Groups C and D |
| Dimensions: W-11.25" L-52" H-8.5 " | Class 1 Division 2, Group A,B,C,D |
| Weight: 45 Lbs | UL 595 Marine Type (Saltwater) |
| Total Watts: 48 watts | UL 844, 924 |
| Voltage: 12/24 volts DC | UL 1598 Marine Type |
| LED Lamp Life Expectancy: 50,000+ Hours | Class II, Division 1 - 2, Groups E,F,G |
| Efficiency: 90 Lumens per Watt | UL Certified Canadian Standards |
| Efficiency: 90 Lumens per Watt | UL listed for Paint Spray Booths |
| Ambient Operating Temp Range:-30 C to 85 C | California Title 24 Compliant |
| Operating Temp Rating: T6 Rated | |
| Minimum Operating Temp: -30 C | |
| Maximum Case Temp: 90 C | |
| Beam Angle: 150 degrees | Special Orders- Requirements |
| Color Temp: 5300K- CRI-75 | Contact us for special requirements |
| Mounting: Bracket Standard - Pendant Optional | |
| Wiring Hub: 1/2 inch threaded | |
| Warranty: YES- 5 Years* | |
| U.L Approval: U.S Certificate Canada Certificate | |
| *5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement. |
