Explosion Proof Fluorescent Lights for Paint Booths - 4 foot - 4 lamp

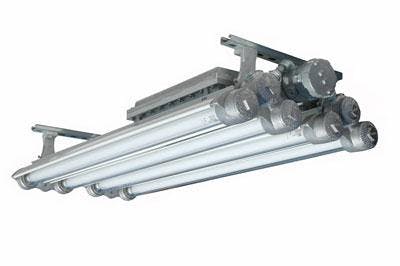

The Magnalight EPL-48-4L Explosion Proof Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 1, Class 1 Division 2 and ideal for hazardous locations where flammable petrochemical vapor or combustible dust exists or has the potential to exist. The unit has a T6 temperature rating and is approved for paint spray booths.
The EPL-48-4L is our 4 foot long, 4 lamp, UL listed Class 1 Division 1 and Class 2 Division 1 & 2 explosion proof fluorescent light which is also approved for use in paint spray booth applications. This T6 temperature rated fixture comes standard with four fluorescent lamps. This fixture is multi-voltage capable with 347 Volt and 480 Volt versions available upon request. The EPL-48-4L provides operators in hazardous locations with a powerful and affordable lighting solution that provides the best explosion proof protection available without sacrificing fixture durability.
| EPL-48-4L Explosion Proof | U.L. Ratings |
| UL Listing: United States - Canada | Class 1 Div 1 & 2, Groups C & D |
| Dimensions: W-24.90" L-57.76" H-9.70" | Class 1 Div 2, Group A,B,C,D |
| Weight: 130 Lbs | UL 595 Outdoor Marine Type (Saltwater) |
| Total Watts: 216 watts* | UL 844, 924 |
| Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz: 347 Volts and 480 Volts available upon request. | UL 1598 Marine Type |
| Total Lumens: STD-T5-HO Bulbs 20,000 | Class 2 Division 1- 2, Groups E,F,G |
| Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours | UL Certified Canadian Standards |
| Efficiency: STD-T5-HO Bulbs 92 Lumens per Watt | UL listed for Paint Spray Booths* California Title 24 Compliant |
| Ambient Operating Temp Range: -30 to 70 C Operating Temp Rating: T6 Rated Minimum Operating Temp: -30 C Maximum Case Temp: 90 C | |
| Beam Angle: N/A | Special Orders- Requirements |
| Color Temp: 5000K - T5-HO Bulbs | Contact us for special requirements |
| Mounting: Unistruts - surface mount | |
| Wiring Hub: 1/2 inch threaded | |
| U.L Approval: U.S Certificate Canada Certificate | |
| *Substitution of included standard bulbs for higher output lamps may affect paint spray booth approval. *5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement. |
