Low Profile Surface Mount Explosion Proof Fluorescent Light - 20,000 Lumens - Paint Booth Approved

Jan. 23, 2013

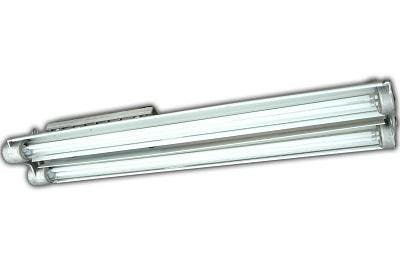

The Magnalight EPL-48-216 Explosion Proof Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 1 and  Class 1 Division 2 for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist. The unit carries a T6 temperature rating, it is also approved for Paint Spray Booths.

The EPL-48-216 fixture is a 4 foot long, 4 lamp, UL listed Class 1 Division 1 and Class 2 Division 1&2 explosion proof fluorescent light which is also approved for use in paint spray booth applications. This T6 temperature rated fixture comes standard with four T5 high output fluorescent lamps. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish.This fixture is multi-voltage capable and is available with a variety of lamp options. The EPL-48-216 provides operators in hazardous locations with a reliable and affordable lighting solution that provides the best explosion proof protection available without sacrificing light quality or fixture durability.

Specifications / Additional Information

EPL-48-216 Explosion Proof U.L. Ratings
UL Listing: United States - Canada Class 1 Division 1, Groups C and D
Dimensions: W-11.25"  L-52"  H-8.5 " Class 1 Division 2, Group A,B,C,D
Weight: 70 Lbs UL 595 Outdoor Marine Type (Saltwater)
Total Watts: 216 watts UL 844, 924
Voltage: Universal 120V-277V 50/60 Hz UL 1598 Marine Type
Total Lumens: 20,000 Class II Division 1 and 2, Groups E,F,G
Lamp Life Expectancy: 20,000 Hours UL Certified Canadian Standards
Efficiency: 92 Lumens per Watt

UL listed for Paint Spray Booths*

California Title 24 Compliant

Ambient Operating Temp Range:  -20 C to 70 C*

Operating Temp Rating: T6 Rated

Minimum Operating Temp: -30 C

Maximum Case Temp: 90 C

Color Temp: 5000K (-50KT5) OR 4100K (-41KT5) Special Orders- Requirements
Mounting: Surface Standard - Pendant Optional Contact us for special requirements
U.L Approval: U.S Certificate Canada Certificate



*Temperatures above 65 degrees C will diminish ballast life from 5 years to 3 years)
