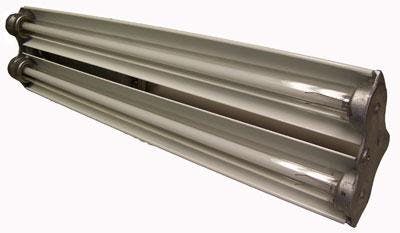

The Magnalight EPL-EMG-48-2L-T5HO Explosion Proof Emergency Lights & Fluorescent light Combination is U.S./Canada U.L. approved Class 1 Division 1, Class 1 Division 2 and ideal for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist.
The EPL-EMG-48-2L-T5HO is a 4 foot long, 2 lamp, UL listed Class 1 Division 1 and Class 2 Division 1and 2 explosion proof fluorescent light which is equipped with an added battery backup providing 90 minutes of emergency runtime. This T6 temperature rated fixture comes standard with two T5 high output fluorescent lamps which produce a combined 5,900 lumens of light. This fixture is multi-voltage capable and provides operators in hazardous locations with a reliable and durable lighting solution that provides explosion proof protection along with the security of an emergency battery backup.
| EPL-EMG-48-2L-T5HO Explosion Proof | U.L. Ratings |
| UL Listing: United States - Canada | Class 1 Division 1, Groups C and D |
| Dimensions: W-11.25" L-52" H-8.5 " | Class 1 Division 2, Group A,B,C,D |
| Weight: 65 Lbs | UL 595 Outdoor Marine Type (Saltwater) |
| Total Watts: 64 watts* | UL 844, 924 |
| Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz | UL 1598 Marine Type |
| Total Lumens: F54-T5HO 20,000 | Class II Division 1- 2, Groups E,F,G |
| Operating Temp Range: T6 Rated -30 C to 70 C Minimum Operating Temp: -30 C Maximum Case Temp: 90 C | UL Certified Canadian Standards |
| Beam Angle: N/A | UL listed for Paint Spray Booths* |
| Color Temp: 5000K | |
| Mounting: Bracket Standard - Pendant Optional | Special Orders- Requirements |
| Wiring Hub: 1/2 inch threaded | Contact us for special requirements |
| U.L Approval: U.S Certificate Canada Certificate | |
| *5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement. |
