Explosion Proof Emergency Fluorescent light Combination - 4 foot - 2 T8 lamps - Class I, Div I

Jan. 23, 2013

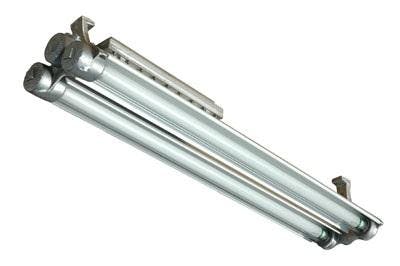

The Magnalight EPL-EMG-48-2L-T8 Explosion Proof Emergency Lights & Fluorescent light Combination is U.S./Canada U.L. approved Class 1 Division 1,  Class 1 Division 2 and ideal for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist.

The EPL-EMG-48-2L-T8 is a 4 foot long, 2 lamp, UL listed Class 1 Division 1 and Class 2 Division 1and 2 explosion proof fluorescent light which is equipped with an added battery backup providing 90 minutes of emergency runtime. This T6 temperature rated fixture comes standard with two T8 fluorescent lamps which produce a combined 5,900 lumens of light. This fixture is multi-voltage capable and provides operators in hazardous locations with a reliable and durable lighting solution that provides explosion proof protection along with the security of an emergency battery backup.

Specifications / Additional Information

EPL-EMG-48-2L-T8 Explosion Proof U.L. Ratings
UL Listing: United States - Canada Class 1 Division 1, Groups C and D
Dimensions: W-11.25"  L-52"  H-8.5 " Class 1 Division 2, Group A,B,C,D
Weight: 65 Lbs UL 595 Outdoor Marine Type (Saltwater)
Total Watts: 64 watts UL 844, 924
Voltage: Multi- 120V-60hz  220V-50hz  240V-60hz  277V-60hz UL 1598 Marine Type
Total Lumens: F32-T8/841 Bulbs 5,900 Class II Division 1- 2, Groups E,F,G
Lamp Life Expectancy: F32-T8/841 Bulbs 30,000 Hours UL Certified Canadian Standards
Efficiency: F32-T8/841 Bulbs N/A UL listed for Paint Spray Booths*
Operating Temp Range: T6 Rated -30 C to 70 C

Minimum Operating Temp: -30 C

Maximum Case Temp: 90 C

Beam Angle: N/A Special Orders- Requirements
Color Temp: 4100K- Contact us for special requirements
Mounting: Bracket Standard - Pendant Optional
Wiring Hub: 1/2 inch threaded
U.L Approval: U.S Certificate  Canada Certificate

*5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement.
