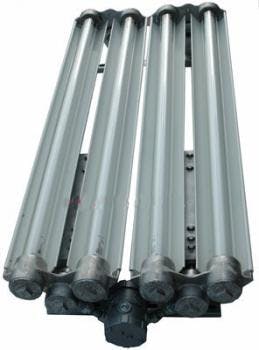

Explosion Proof LED Light w/ Emergency Ballast Back Up - 4 Foot, 4 Bulbs - Class I & II, Div. I
The Magnalight EPL-EMG-48-4L-LED Explosion Proof LED Light Fixture is U.S./Canada U.L. approved Class 1 Division 1 &2 and Class 2 Division 1 and 2 for areas where flammable chemical/petrochemical vapors exist or have the potential to exist. This explosion proof LED light has a T-6 temperature rating and a carries a paint spray booth light certification as well.
The EPL-EMG-48-4L-LED is equipped with Magnalight’s specially designed LED T-series bulbs which produce 15% more foot candles of illumination at 8 feet as compared to standard T8 lamps when measured with an Extech light meter. Our LED-T series bulbs are visibly brighter than standard T8s and have consistently surprised many of our customers with their unexpectedly high light output levels.
With an integrated emergency ballast, this explosion proof LED light will continue to operate for 90 minutes once the main electrical power to the light is severed. Once standard electrical power is restored, the emergency battery pack will be recharged.
| EPL-EMG-48-4L-LED Explosion Proof | U.L. Ratings |
| UL Listing: United States - Canada | Class 1 Division 1, Groups C and D |
| Dimensions: W-23.85" L-52" H-8.5 " | Class 1 Division 2, Group A,B,C,D T6 |
| Weight: 65 Lbs | UL 595 Marine Type -Saltwater |
| Total Watts: 48 watts | UL 844, 924 |
| Voltage: Universal 120-277VAC 50/60 hz | UL 1598 Marine Type |
| Low Voltage (Optional): 12/24 Dc power | Class II, Division 1 - 2, Groups E,F,G |
| LED Lamp Life Expectancy: 50,000+ Hours | UL Certified Canadian Standards |
| Efficiency: 90 Lumens per Watt | UL listed for Paint Spray Booths California Title 24 Compliant |
| Operating Temp Range: -30 C to 70 C Minimum Operating Temp: -30 C Maximum Case Temp: 90 C | |
| Beam Angle: 150 degrees | Special Orders- Requirements |
| Color Temp: 5300K | Contact us for special requirements |
| Mounting: Surface Standard - Pendant Optional | |
| Wiring Hub: 1/2 inch threaded | |
| Warranty: YES- 5 Years* | |
| U.L Approval: U.S Certificate Canada Certificate | |
| *5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement. |
