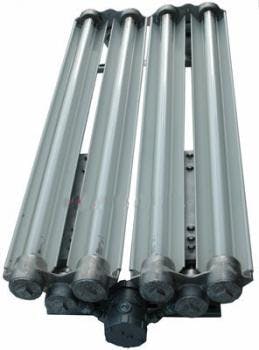

The Magnalight EPL-EMG-48-4L-T5HO Explosion Proof, Paint Booth Approved, Fluorescent Light Fixture with Emergency Battery Backup is U.S./Canada U.L. approved Class 1 Division 1, Class 1 Division 2 and ideal for hazardous locations where flammable petrochemical vapor or combustible dust exists or has the potential to exist.
The EPL-EMG-48-4L-T4HO is our 4 foot long, 4 lamp, UL listed Class 1 Division 1 and Class 2 Division 1&2 explosion proof fluorescent light which is equipped with an added battery backup providing 90 minutes of emergency runtime. This T6 temperature rated fixture comes standard with four T5HO high output fluorescent lamps which produce a combined 20,000 lumens of light. This fixture is multi-voltage capable and provides operators in hazardous locations with a reliable and durable lighting solution that provides explosion proof protection along with the security of emergency battery backup.
| EPL-EMG-48-4L-T5HO Explosion Proof | U.L. Ratings |
| UL Listing: United States - Canada | Class 1 Division 1, Groups C and D |
| Dimensions: W-22.50" L-52" H-8.5" | Class 1 Division 2, Group A,B,C,D |
| Weight: 130 Lbs | UL 595 Outdoor Marine Type (Saltwater) |
| Total Watts: 216 watts | UL 844, 924 |
| Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz | UL 1598 Marine Type |
| Total Lumens: F54-T5HO Bulbs 20,000 | Class II Division 1- 2, Groups E,F,G |
| Lamp Life Expectancy: F54-T5HO Bulbs 20,000 Hours | UL Certified Canadian Standards |
| Efficiency: N/A | UL listed for Paint Spray Booths |
| Operating Temp Range: T6 Rated -30 C to 70 C Minimum Operating Temp: -30 C Maximum Case Temp: 90 C | |
| Battery Backup: 90 minute runtime on battery backup | Special Orders- Requirements |
| Color Temp: 500K | Contact us for special requirements |
| Mounting: Unistruts | |
| Wiring Hub: 1/2 inch threaded | |
| U.L Approval: U.S Certificate Canada Certificate | |
| View dimensional drawings for this explosion proof light | |
| *5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement. |
