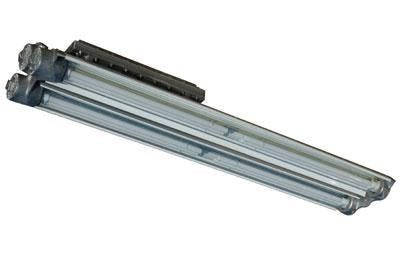

Explosion Proof Fluorescent Light with Emergency Battery Backup - 4' 4 Lamp Fixture - Bi-Axial Bulb

Jan. 23, 2013

he Magnalight EPL-EMG-48-4L-BX Explosion Proof Four Bi-Axial Bulb Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 1, Class 1 Division 2, carries a T6 temperature rating and ideal for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist.

The EPL-EMG-48-4L-BX fixture is a 4 foot long, 4 lamp, UL listed Class 1 Division 1 and Class 2 Division 1 & 2 explosion proof fluorescent light which is also approved for use in paint spray booth applications. This T6 temperature rated fixture comes standard with four Bi-Axial 40 watt compact fluorescent bulbs which produce a combined 80 watts of illumination. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This unit is equipped with an emergency batery backup system which will power one lamp for 90 minutes in the event of power failures.

The EPL-EMG-48-4L-BX T is multi-voltage capable and provides operators in hazardous locations with a reliable and durable lighting solution that provides explosion proof protection along with the security of an emergency battery backup.

Specifications / Additional Information

EPL-EMG-48-4L-BX Explosion Proof U.L. Ratings
UL Listing: United States - Canada Class 1 Division 1, Groups C and D
Dimensions: W-11.25" L-52" H-8.5 " Class 1 Division 2, Group A,B,C,D
Weight: 65 Lbs UL 595 Outdoor Marine Type (Saltwater)
Total Watts: 80 watts UL 844, 924
Voltage: 120V-60hz 220V-50hz 240V-60hz 277V-60hz UL 1598 Marine Type
Optional Voltages: 347 Volt and 480 Volt Class II Division 1- 2, Groups E,F,G
Ambient Operating Temp Range: -30 C to 70 C* UL Certified Canadian Standards
Operating Temp Rating: T6 Rated UL listed for Paint Spray Booths
California Title 24 Compliant
Minimum Operating Temp: -30 C

Maximum Case Temp: 90 C

Beam Angle: N/A Special Orders- Requirements
Color Temp: N/A Contact us for special requirements
Mounting: Bracket Standard - Pendant Optional
Wiring Hub: 1/2 inch threaded
U.L Approval: U.S Certificate Canada Certificate

*5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement.
