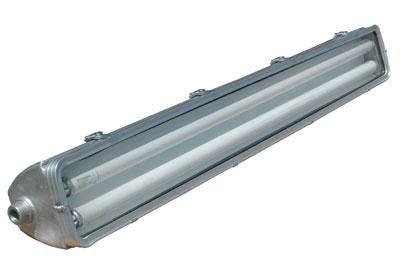

The Magnalight HAL-48-2L-220V Hazardous Area Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4A temperature rating and ideal for open air hazardous locations where flammable chemical/petrochemical vapors may be occassionally encountered. This hazardous location fluorescent fixture runs off 220Volts, 50/60Hz and is equipped with standard surface end mounts.
The HAL-48-2L-220V fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 2 Groups A, B, C and D hazardous area fluorescent light and a good choice for use in applications where a high voltage lighting option is needed.. This fixture is T4A temperature rated, comes standard with included F54-T5/HO bulbs, and is available with optional T12/HO and T8/841 bulbs. The lamps are protected by an aluminum framed hinged glass door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is designed to operate on 220Volts, 50/60Hz and is U.L. 595 and UL 1598A Marine Type approved for use marine environments. The HAL-48-2L-220V provides operators in hazardous locations with a reliable high voltage lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
HAL-48-2L-220V Hazardous Area | U.L. Ratings |
UL Listing: United States - Canada | Class 1 Division 2, Groups A, B, C, D |
Dimensions: W-7" L-49 3/4 " H-6 1/8 " | UL 595 Outdoor Marine Type (Saltwater) |
Weight: 33 Lbs | UL 1598A Marine Type California Title 24 Compliant |
Total Watts: 108 watts* | |
Voltage: 220Volts, 50/60Hz | |
Total Lumens: STD-T5-HO Bulbs 10,000 | |
Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours | |
Efficiency: STD-T5-HO Bulbs 92 Lumens per Watt | |
Operating Temp Range: T4A Rated -30 C to 70 C Minimum Operating Temp: -30 C Maximum Case Temp: 90 C | |
Beam Angle: N/A | Special Orders- Requirements |
Color Temp: 4100K- | Contact us for special requirements |
Mounting: Bracket Standard - Pendant Optional | |
Wiring Hub: 3/4 inch threaded | |
U.L Approval: U.S Certificate Canada Certificate | |
*Wattage totals are lamps only and may vary with different lamps. |
