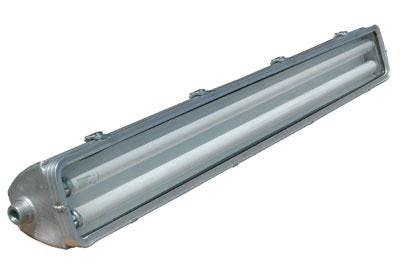

Class 1 Division 2 LED Light - 4 foot 2 lamp - LED T series Style (fluorescent replacement)
The Magnalight HAL-48-2L-LED Hazardous Area LED Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4A temperature rating and ideal for hazardous locations where flammable chemical/petrochemical vapors may be occassionally encountered.
The HAL-48-2L-LED fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 2 Groups A, B, C and D hazardous area LED light that takes the reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4A temperature rated and comes standard with our high power 24 watt LED lamps. The lamps are protected by an aluminum framed shatter and heat resistant clear acrylic lens secured with ten draw latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture can be configured to run on 120 to 277VAC as well as 12-24VDC and is U.L. 595 and UL 1598A Marine Type approved for use marine environments. The HAL-48-2L-LED is weatherproof and provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
| HAL-48-2L-LED Hazardous Area | U.L. Ratings |
| UL Listing: United States - Canada | Class 1 Division 2, Groups A, B, C and D |
| Dimensions: W-7" L-49 3/4" H-6 1/8" | UL 595 Outdoor Marine Type (Saltwater) |
| Weight: 33 Lbs | UL 1598A Marine Type |
| Total Watts: 48 watts | California Title 24 Compliant |
| Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz | |
| Low Voltage (Optional): 12-24V DC | |
| LED Lamp Life Expectancy: 50,000 Hours | |
| Efficiency: 90 Lumens per Watt | |
| Operating Temp Range: T4A rated -30 C to 85 C Minimum Operating Temp: -30 C Maximum Case Temp: 90 C | |
| Beam Angle: 150 degrees | Special Orders- Requirements |
| Color Temp: 5300K- Color Rendering Index-75 | Contact us for special requirements |
| Mounting: Bracket Standard, Sliding Bracket Optional | |
| Wiring Hub: 3/4 inch threaded | |
| Warranty: YES- 3 Years* | |
| U.L Approval: U.S Certificate Canada Certificate | |
| *3 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement. |
