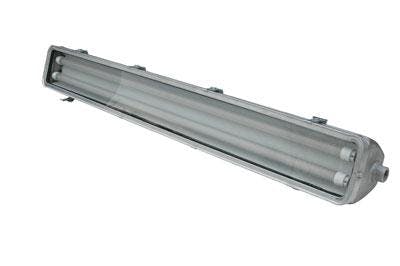

Explosion Proof Class I, Div. II LED Fixture - 4 foot, 2 T-Style LED Lamps - Emergency Ballast

Jan. 24, 2013

The Magnalight HAL-EMG-48-2L-LED Hazardous Area LED Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4C temperature rating and ideal for open air hazardous locations where flammable chemical/petrochemical vapors may be occassionally encountered.

The HAL-EMG-48-2L-LED fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 2 Groups A, B, C and D hazardous area LED light that takes the reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4C temperature rated and comes standard with our high power 24 watt LED lamps. The lamps are protected by an aluminum framed hinged glass door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish.

This fixture can be configured to run on 120 to 277VAC as well as 12-24VDC and is U.L. 595 and UL 1598A Marine Type approved for use marine environments. The HAL-48-2L-LED is weatherproof and provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors my occasionally be present.

This light works, mounts and is wired like our HAL-48-2L-LED explosion proof LED light fixtures. The main difference is that we add a battery backup unit that adds emergency light functionality to the fixture. This hazardous area emergency light will run the standard UL suggested 90 minutes after power is lost. The light recharges the battery once electrical power is restored.

Specifications / Additional Information

HAL-EMG-48-2L-LED Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class 1 Division 2, Groups A, B, C and D
Dimensions: W-7"  L-49 3/4"  H-6 1/8" UL 595 Outdoor Marine Type (Saltwater)
Weight: 33 Lbs UL 1598A Marine Type
Total Watts: 48 watts
Voltage: Multi- 120V-60hz  220V-50hz  240V-60hz  277V-60hz
Low Voltage (Optional): 12-24V DC
LED Lamp Life Expectancy: 50,000 Hours
Efficiency: 90 Lumens per Watt
Operating Temp Range: T4C rated -30 C to 70 C
Beam Angle: 150 degrees Special Orders- Requirements
Color Temp: 5300K- Color Rendering Index-75 Contact us for special requirements
Mounting: Bracket Standard, Sliding Bracket Optional
Wiring Hub: 3/4 inch threaded
Battery Backup: 90 minute runtime at 900 lumens
U.L Approval: U.S Certificate  Canada Certificate

*3 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement.
