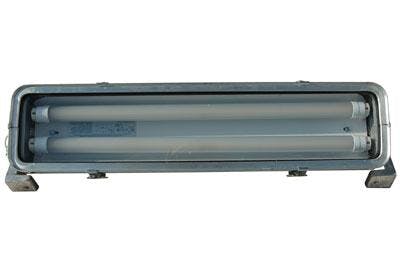

Hazardous Location Area LED Fixture - 2 foot, 2 lamp - Class I, Div. II Groups A-D

Jan. 24, 2013

The Magnalight HAL-24-2L-LED Hazardous Area LED Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4A temperature rating and ideal for open air hazardous locations where flammable chemical/petrochemical vapors may be occassionally encountered.

The HAL-24-2L-LED fixture is a 2 foot long, 2 lamp, UL listed Class 1 Division 2 Groups A, B, C and D hazardous area LED light and a good choice for use in applications where space is at a premium. This fixture is T4A temperature rated and comes standard with our high power and efficiency 15 watt LED lamps. The lamps are protected by an aluminum framed hinged glass door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is multi-voltage capable and is U.L. 595 and UL 1598A Marine Type approved for use marine environments. The HAL-24-2L-LED provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.

Specifications / Additional Information

HAL-24-2L-LED Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class 1 Division 2, Groups A, B, C and D
Dimensions: W-7" L-25.5" H-6 1/8" UL 595 Outdoor Marine Type (Saltwater)
Weight: 17 Lbs UL 1598A Marine Type

California Title 24 Compliant
Total Watts: 30 watts
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz
Low Voltage (Optional): 12-24V DC
LED Lamp Life Expectancy: 50,000 Hours
Efficiency: 90 Lumens per Watt
Operating Temp Range: T4A rated -30 C to 85 C
Beam Angle: 150 degrees Special Orders- Requirements
Color Temp: 5300K- Color Rendering Index-75 Contact us for special requirements
Mounting: Bracket Standard
Wiring Hub: 3/4 inch threaded
Warranty: YES- 3 Years*
U.L Approval: U.S Certificate Canada Certificate

*3 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement.
