Hazardous Location Area Fluorescent Light - 2', 2 lamps - Low Voltage - Class I, Div. II
The Magnalight HAL-24-2L-LV Hazardous Area Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4A temperature rating and ideal for open air hazardous locations where flammable chemical/petrochemical vapors may be occassionally encountered. This low voltage unit is designed to operate on 12/24 volt current.

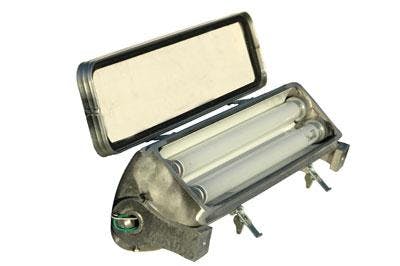

The HAL-24-2L-LV fixture is a 2 foot long, 2 lamp, UL listed Class 1 Division 2 Groups A, B, C and D hazardous area fluorescent light and a good choice for use in applications where low voltage illumination is required or preferred. This fixture is T4A temperature rated and comes standard with F17-T8 bulbs. The lamps are protected by an aluminum framed hinged glass door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is designed to operate on 12 or 24 volt current only and is U.L. 595 and UL 1598A Marine Type approved for use marine environments. The HAL-24-2L-LV provides operators in hazardous locations with a compact, reliable and low voltage lighting solution for open areas where flammable chemicals and vapors my occasionally be present.
HAL-24-2L-LV Hazardous Area | U.L. Ratings |
UL Listing: United States - Canada | Class 1 Division 2, Groups A, B, C, D |
Dimensions: W-7" L-25.5 " H-6 1/8 " | UL 595 Outdoor Marine Type (Saltwater) |
Weight: 17 Lbs | UL 1598A Marine Type California Title 24 Compliant |
Total Watts: 34 watts* | Temp Rating: T4A |
Voltage: 12 - 24 Volts | |
Total Lumens: STD-T8 Bulbs 2,400 | |
Lamp Life Expectancy: STD-T8 Bulbs 24,000 Hours | |
Efficiency: STD-T8 Bulbs 70 Lumens per Watt | |
Operating Temp Range: T4A Rated -30 C to 70 C Minimum Operating Temp: -30 C Maximum Case Temp: 90 C | |
Beam Angle: N/A | Special Orders- Requirements |
Color Temp: 3500K- | Contact us for special requirements |
Mounting: Bracket Standard | |
Wiring Hub: 3/4 inch threaded | |
U.L Approval: U.S Certificate Canada Certificate | |
| |
*Wattage totals are lamps only and may vary with different lamps. |
