HAL-EMG-48-2L-T5H Fluorescent Light w/ Emergency Backup Ballast - C1 D II - Hazardous Location Areas

Jan. 24, 2013

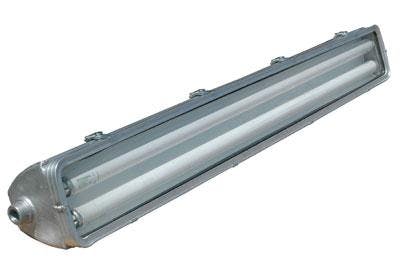

The Magnalight HAL-48-2L  Hazardous Area Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4A temperature rating and ideal for open air hazardous locations where flammable chemical/petrochemical vapors may be occassionally encountered.

The HAL-48-2L fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 2 Groups A, B, C and D hazardous area fluorescent light and a good choice for use in applications where space is at a premium. This fixture is T4A temperature rated, comes standard with F54-T5/850/HO bulbs, and is available with optional T12/HO and T8/841 bulbs. The lamps are protected by an aluminum framed hinged glass door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is multi-voltage capable and is U.L. 595 and UL 1598A Marine Type approved for use marine environments. The HAL-48-2L provides operators in hazardous locations with a compact, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.

Specifications / Additional Information

HAL-48-2L Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class 1 Division 2, Groups A, B, C, D
Dimensions: W-7"   L-49 3/4 "   H-6 1/8 " UL 595 Outdoor Marine Type (Saltwater)
Weight: 33 Lbs UL 1598A Marine Type

California Title 24 Compliant
Total Watts: 108 watts*
Voltage: Multi- 120V-60hz  220V-50hz  240V-60hz  277V-60hz
Total Lumens: STD-T5-HO Bulbs 10,000
Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours
Efficiency: STD-T5-HO Bulbs  92 Lumens per Watt
Operating Temp Range: T4A Rated -30 C to 70 C
Beam Angle: N/A Special Orders- Requirements
Color Temp: 5000K- T5-HO Bulbs Contact us for special requirements
Mounting: Bracket Standard - Pendant Optional
Wiring Hub: 3/4 inch threaded
U.L Approval: U.S Certificate  Canada Certificate

Hal-48-2L Dimensional Drawing

*Wattage totals are lamps only and may vary with different lamps.
