Hazardous Location Area Emergency Backup Fluorescent Light - 2 foot 2 lamp - Class 1 Division 2 Group

Jan. 24, 2013

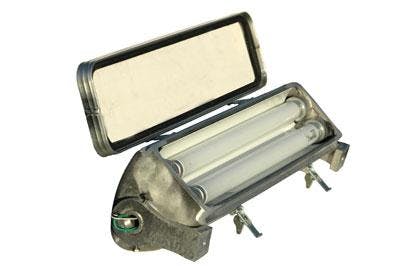

The Magnalight HAL-EMG-24-2L Hazardous Area Fluorescent Emergency Backup Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4A temperature rating and ideal for open air hazardous locations where flammable chemical/petrochemical vapors may be occassionally encountered.

The HAL-EMG-24-2L emergency fixture is a 2 foot long, 2 lamp, UL listed Class 1 Division 2 Groups A, B, C and D hazardous area fluorescent light with an emergeny backup ballast and a good choice for use in applications where space is at a premium. This fixture is T4A temperature rated, comes standard with F24-T5/HO bulbs, and is available with optional T12/HO and T8/841 bulbs. The lamps are protected by an aluminum framed hinged glass door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish.

This fixture is multi-voltage capable and is U.L. 595 and UL 1598A Marine Type approved for use marine environments. The HAL-EMG-24-2L provides operators in hazardous locations with a compact, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.

This light works, mounts and is wired like our HAL-24-2L explosion proof light fixtures. The main difference is that we add a battery backup unit that adds emergency light functionality to the fixture. This hazardous area emergency light will run the standard UL suggested 90 minutes after power is lost. The light recharges the battery once electrical power is restored.

Specifications / Additional Information

HAL-EMG-24-2L Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class 1 Division 2, Groups A, B, C, D
Dimensions: W-7"   L-25.5 "   H-6 1/8 " UL 595 Outdoor Marine Type (Saltwater)
Weight: 17 Lbs UL 1598A Marine Type

California Title 24 Compliant
Total Watts: 34 watts Temp Rating: T4A
Voltage: Multi- 120V-60hz  220V-50hz  240V-60hz  277V-60hz
Total Lumens: 2650
Lamp Life Expectancy: 24,000 Hours
Efficiency:  83 Lumens per Watt
Operating Temp Range: T4A Rated -30 C to 70 C

Minimum Operating Temp:
-30 C

Maximum Case Temp:
90 C

Beam Angle: N/A Special Orders- Requirements
Color Temp: 4100K- Contact us for special requirements
Mounting: Bracket Standard
Wiring Hub: 3/4 inch threaded
U.L Approval: U.S Certificate  Canada Certificate
