Hazardous Location Lighting on Trailer Hitch Mount - 150 Watts - 30 LEDS - Class 1, Division 2 - 12V

Jan. 24, 2013

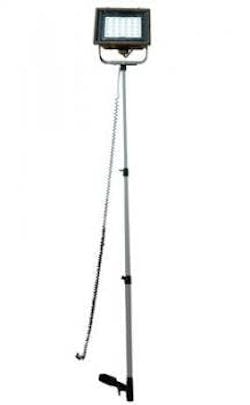

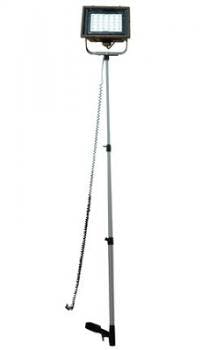

The Magnalight HAL-LEDTH-150W-LED Trailer Hitch Mounted Light Tower is Class-1 Division 2 approved and comes complete with a IP68 rated 150 watt LED light head producing a 14,790 lumen flood of light capable of illuminating an area 540’ in length by 480’ feet in width.

This trailer hitch mounted explosion proof light can be used with 12 or 24 VDC voltages depending upon chosen configuration and is ideal for use as work area illumination, event lighting, emergency operations lighting, or equipment lighting and is suitable for use on any vehicle that will accept a hitch mount. This light tower is extendable from 3’ to 8’ in height and incorporates a trailer hitch mounting system that allows operators to easily secure the fixture to receiver hitch equipped vehicles at any location.

This mounting system provides extremely secure placement of the tower in areas where high winds are commonly encountered as the weight of the vehicle removes the possibility of the unit swaying excessively or tipping over.

HAL-LEDTH-150W-LED LED Light Fixture U.L Ratings
Lamp Type: CREE XLamp-XPG® LED Class-1 Division 2- Groups A,B,C,D
Dimensions: 14 "-Depth,  11"-H,   15 "W UL1598 Outdoor Marine Use
Watts: 150 IP65 Construction
Lumens Per Watt: 98 T1 Temperature Rating
Voltage: 12-24 Volts DC
Amp Draw: 12.5 @ 12V - 6.25 @ 24V
Lighting Configuration: 60° Flood Pattern
Weight: 25lbs
Ambient Operating Temp: -30C to 85C
U.L. Listing: Outdoor Marine Approved Special Orders- Requirements
Total Lumens: 14,790 Contact us for special requirements
Wiring: 3/4 inch Threaded Conduit Entrance
Mounting: Adjustable Trunnion Bracket
Click Here to View Dimensional Schematic
