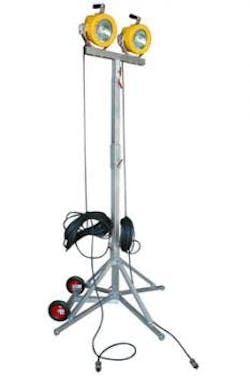

Explosion Proof Light - Quadpod Mount - 2 X 70 Watt Metal Halide Lights - Class 1 Div 1 - Wet Areas
The Magnalight EPL-TP-2X70-100 Quadpod Mounted Explosion Proof Metal Halide Light is U.L. approved Class 1 & 2, Division 1 & 2 and is rated for use in wet and marine environments. The quadpod mount and metal halide lamps used with this unit provide operators with excellent power and efficiency coupled with high versatility and ease of use.
Two 70 watt, explosion proof, metal halide lamps mounted on our non-sparking adjustable and wheeled quadpod gives operators an easily deployable source of powerful light that can be quickly setup and adjusted to effectively illuminate hazardous work areas. This unit contains two 70 watt, dual ended, metal halide lamps and is capable of illuminating 26,000 square feet of work space with 65,000 lumens of light. The two 70 watt metal halide lamps on this unit produce illumination equivalent to two typical 400 watt halogen lamps while drawing only 140 watts at 1.1 amps.
The metal halide lamps run cooler than 400 watt halogen lamps, resulting in an easier to handle unit and less heat in the workspace. This unit's durability, easy deployment, high power and the good color rendering of its metal halide lamps make it ideal for close work and hazardous areas where safety, detail and accuracy are critical.
EPL-TP-2X70-100 Quadpod Mounted | U.L. Ratings |
UL Listing: United States - Canada | Class I & II, Div 1 & 2, Groups C,D |
Dimensions Lamp Only: W-13 1/4" D-12 1/2" H-11 1/2" | Class II Div 1 & 2, Groups F, G |
Weight: 95 Lbs including quadpod | Class III |
Total Watts: 140 watts | UL 781 listed portable HAZLOC use |
Voltage: 120 Volts AC, 1.1 amp draw | ECP 1523 5-15P explosion proof plug |
Coverage: 26,000 square feet | UL Certified- U.S - CSL |
Lamp Life Expectancy: 25000+ Hours | |
Lamp Type: Metal Halide | |
Operating Temp Range: T4 rated | |
Mounting: 4.5' to 8' Extendible Wheeled quadpod | Special Orders- Requirements |
Wiring: 100 ft SOOW Cord ECP1523 plug | Contact us for special requirements |
Total Lumens: 65,000 | |
U.L Approval: U.S Certificate Canada Certificate |
