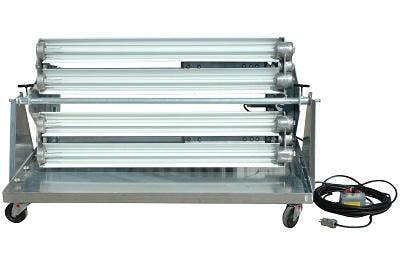

The Magnalight EPLC-48-4L Explosion Proof Fluorescent Light Cart is U.S./Canada U.L. approved Class 1 Division 1, Class II Division 1 and offers exceptional lighting versatility and convenience with effective protection to operators working in hazardous locations. The EPLC-48-4L explosion proof light cart is UL listed Class 1 Division 1 and Class II Division 1&2 and offers the ability to quickly and easily add light wherever it is needed without the need for special considerations of hazardous conditions beyond adhering to the normal rules of ratings and classifications. This unit incorporates the highly effective Magnalight EPL-48-4L explosion proof fixture equipped with four T5-HO fluorescent lamps into a mobile platform. The platform is constructed of corrosion resistant aluminum alloy, has non sparking casters, and includes a Class I Div I Explosion Proof Switch with 50 foot of SOOW electric cable as well. This explosion proof light cart offers an excellent lighting solution for operators who need full power illumination in areas where traditional fixed mount lighting is obstructed or cannot effectively reach.
| EPLC-48-4L Explosion Proof | U.L. Ratings |
| UL Listing: United States - Canada | Class 1 Division 1, Groups C and D |
| Dimensions: W-24" L-58" H-25.5" | Class 1 Division 2, Group A,B,C,D |
| Total Unit Weight: 180 Lbs | UL 595 Outdoor Marine Type (Saltwater) |
| Total Watts: 212 watts* | UL 844, 924 |
| Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz: | UL 1598 Marine Type |
| Total Lumens: STD-T5-HO Bulbs 20,000 | Class II Division 1- 2, Groups E,F,G |
| Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours | UL Certified Canadian Standards |
| Efficiency: STD-T5-HO Bulbs 92 Lumens per Watt | UL listed for Paint Spray Booths* |
| Operating Temp Range: T6 Rated* -30 C to 70C Minimum Operating Temp: -30 C Maximum Case Temp: 90 C | |
| Beam Angle: N/A | |
| Color Temp: 5000K- T5-HO Bulbs | |
| Mounting: Portable Cart with Adjustable Brackets | |
| Wiring Hub: N/A | |
| U.L Approval: U.S Certificate Canada Certificate | |
| View a Photometric Graph of the EPL-48-4L Bulb Types |
| View a Photometric Graph of the EPL-48-4L Bulb Types |
