Class I, Div. II Fluorescent Fixture - Corrosion Resistant (Saltwater) - 220Volts, 50/60Hz - Larson Electronics LLC

Jan. 24, 2013

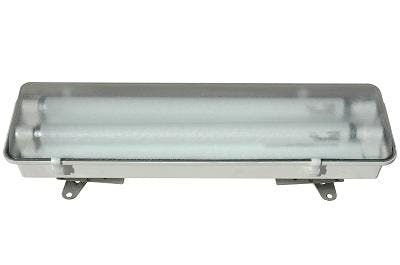

The Magnalight HALP-48-2L 220V, 50/60Hz Hazardous Area Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4C Temperature Rating, and is specifically designed to handle the rigors of wet and corrosive marine environments.

The HALP-48-2L 220V hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture runs off of 220V, 50/60Hz electrical current and is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant stainless steel latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. This fixture is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved. The HALP-48-2L also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications.
Specifications / Additional Information

HALP-48-2L 220V Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class 1 Division 2, Groups A, B, C, D
Dimensions: W-8.25 "   L-52 "   H-7"

UL 844

Weight: 8 Lbs UL 1598A Marine Type (Salt water)

California Title 24 Compliant
Total Watts: 108 watts*
Voltage: 220V, 50/60Hz
Total Lumens: STD-T5-HO Bulbs 10,000
Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours
Efficiency: STD-T5-HO Bulbs  92 Lumens per Watt
Operating Temp Range: T4C Rated -30 C to 70 C

Minimum Operating Temp: -30 C

Maximum Case Temp: 90 C

Beam Angle: N/A Special Orders- Requirements
Color Temp: 4100K- Contact us for special requirements
Mounting: Flange type stainless steel
Wiring Hub: 1/2 inch threaded
U.L Approval: U.S Certificate  Canada Certificate

Meets US Coast Guard specifications.

*Wattage totals are lamps only and may vary with different lamps.
