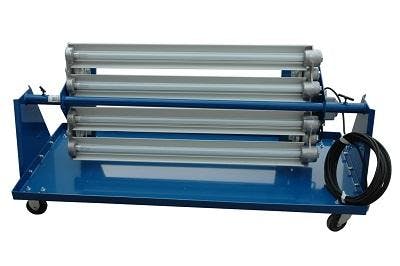

The EPLC-48-4L-LED explosion proof light cart is UL listed Class 1 Division 1 and Class 2 Division 1 & 2 and offers the ability to quickly and easily add light wherever it is needed. This unit incorporates the highly effective Magnalight EPL-48-4L-LED explosion proof fixture equipped with four 24 Watt LED T-series tube lights into a mobile platform. The platform is constructed of corrosion resistant aluminum alloy, has non sparking casters, and includes a Class 1 Div 1 Explosion Proof Switch with 50 foot of SOOW electric cable as well. This T6 temperature rated explosion proof LED light cart offers superior LED benefits in the form of reduced operating and maintenance costs, extreme lamp life, and high resistance to impacts and vibration.
This unit is an excellent lighting solution for operators who need full power illumination in areas where traditional fixed mount lighting is obstructed or cannot effectively reach.
| EPLC-48-4L-LED Explosion Proof | U.L. Ratings |
| UL Listing: United States - Canada | Class 1 Division 1, Groups C and D |
| Dimensions: W-30 " L-58 " H-35.5 " | Class 1 Division 2, Group A,B,C,D |
| Total Unit Weight: 115 Lbs | UL 595 Outdoor Marine Type (Saltwater) |
| Total Watts: 96 watts | UL 844, 924 |
| Voltage: 120V-60hz 220V-50hz 240V-60hz 277V-60hz: low voltage available, 12 or 24 volts dc. | UL 1598 Marine Type |
| Total Lumens: Led-T series Bulbs 7,680 | Class II Division 1- 2, Groups E,F,G |
| Lamp Life Expectancy: Led-T series Bulbs 50,000+ Hours | UL Certified Canadian Standards |
| Efficiency: Led-T series Bulbs 90 Lumens per Watt | UL listed for Paint Spray Booths* |
| Temp Range: T6 Rated* -40C - 85C | |
| Beam Angle: 150 degrees | |
| Minimum Operating Temp: -30 C | |
| Maximum Case Temp: 90 C | |
| Color Temp: 5300K- | |
| Mounting: Portable Cart with Adjustable Brackets | |
| Wiring: 50ft SOOW cord |
