The Magnalight EPLCD-48-100LED Explosion Proof LED Dolly Light Fixture is U.S./Canada U.L. approved Class 1 Division 1 for areas where flammable chemical/petrochemical vapors exist or have the potential to exist. This explosion proof LED light has a T4A temperature rating.The EPLCD-48-100LED is comprised of solid state design LEDs, making this explosion proof led fixture highly resistant to shock and vibrations. This 100 Watt LED fixture draws less than one amp on a 120 Volt AC power system while producing 7,000 lumens of bright white light.

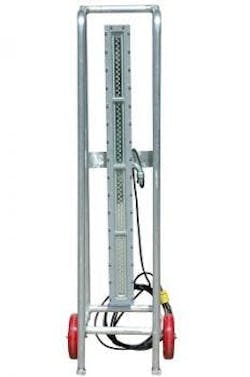

This explosion proof light and dolly cart offers an excellent lighting solution for operators who need illumination in unusual areas where traditional fixed mount lighting is obstructed or cannot effectively reach. The light head on this non-sparking aluminum cart offers a full 360 degree rotation and 180 degree pivot, allowing the operator to adjust the light accordingly to meet any application. The dolly cart is comprised of light-weight aluminum tubing and features rubber wheels for easy transportation.
EPLCD-48-100LED Explosion ProofU.L. Ratings | UL Listing: United States - Canada | Class 1 Division 1, Groups C and D T4A |
| Dimensions: W-4.83" L-47.46" H-6.15 "-Light only | UL 844 |
| Weight: 36 Lbs | UL 1598 Marine Type |
| Total Watts: 100 watts | UL 8750 |
| Voltage: Universal 120-277VAC 50/60 hz | IP66 Rated |
| LED Lamp Life Expectancy: 100,000+ Hours | NEMA 4X |
| Efficiency: 70 Lumens per Watt | CSA 22.2 No. 137-M81 |
| Ambient Operating Temp Range: -40 C to 65 C | |
| Operating Temp Rating: T4A Rated | |
| Minimum Operating Temp: -40 C | |
| Maximum Case Temp: 65 C | |
| Beam Angle:150 degrees | |
Color Temp:5000K |
Mounting:Portable Dolly Cart with Wheels | Special Orders- Requirements | Wiring Hub: 1/2 inch threaded | Contact us for special requirements |
| Warranty: YES- 5 Years* |
