Class 1 Division 1 & II Explosion Proof 150 Watt High Bay LED Light Fixture 12,000 Lumens

Jan. 24, 2013

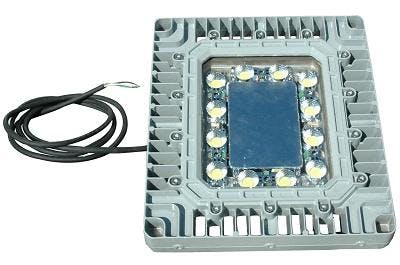

The Magnalight EPL-HB-150LED-RT Explosion Proof High Bay light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures.

This Class 1 Division 1 & 2, Class 2 Division 1 & 2 explosion proof light fixture provides 12,000 of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.

EPL-HB-150LED-RT High Bay Ratings
Lamp Type: LED T5 Temperature Rating
Dimensions: 14"H x 16"W 5"D Class 1 Division 1&2 Groups C and D
Total Watts: 150W Class 2 Division 1&2 Groups E,F,G
Lumens: 12,000 Class 3
Voltage: Multi- 100-277 VAC, 50/60Hz CSA Certified to C22.2 No.137-M81
Mounting: 3/4” NPT or 5/16”-18 x .75” NPT Thread cETL Certified to UL844 and C22.2 Standards
Weight: 28lbs
Lighting Configuration: Flood Pattern
Temp Rating: T5 -50C to +85C
Color Temp: 6000K, 70-CRI.
Lamp Life: 60,000+ Hours
LED Driver Specs
Input Voltage: 100-277 Volts AC Special Orders- Requirements
Input Current: 1.8A Max Contact us for special requirements
Power Factor: >98%
Efficiency: >88%
Output Voltage: 54V Max

Output Current: 2.1A

*5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement.

Please note: 6-8 Week Lead time
