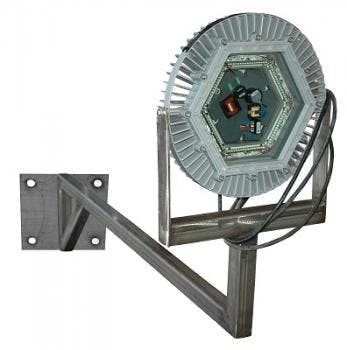

Explosion Proof 150 Watt LED Light Fixture on Stainless Steel Swing Arm w/ Hinge - 10,000 Lumens

Jan. 24, 2013

The Magnalight HBLP-1MLED-SWAM light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and the swing arm design makes this lamp an excellent replacement upgrade option for less durable and efficient halogen or HID loading bay and dock lights.

This Class 1 Division 1 & 2, Class 2 Division 1 & 2 explosion proof light fixture provides 10,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention.

A five foot swing arm constructed of 316 stainless steel provides adjustable mounting for this 150 Watt Explosion Proof LED fixture and allows users to position the light as needed during operations. This swing arm is ideal also for mounting the unit to loading door areas and docks for use as a loading bay or dock light.

HBLP-1MLED-SWAM Swing Arm 150W LED Ratings
Lamp Type: LED T5 Temperature Rating
Dimensions: Light Head: 16" Diameter, 5" Thickness Class 1 Division 1&2 Groups C and D
Total Watts: 150W Class 2 Division 1&2 Groups E,F,G
Lumens: 10,000 Class 3 Division 1&2
Voltage: Multi- 100-277 VAC, 50/60Hz CSA Certified to C22.2 No.137-M81
Lighting Configuration: Flood Pattern cETL Certified to UL844 and C22.2 Standards
Mounting: 3/4” NPT or 5/16”-18 x .75” NPT Thread
Weight: 50lbs
Termination: 20 foot SOOW cord - no plug
Temp Rating: T5 -40C to +65C Special Orders- Requirements
Color Temp: 6000K, 70-CRI. Contact us for special requirements
Lamp Life: 60,000+ Hours
