Explosion Proof 150 Watt Adjustable Pole Top Stanchion Mount LED Light Fixture - Slip Fit Yoke

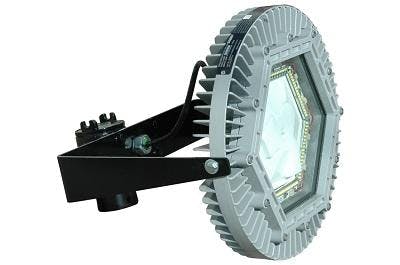

The Magnalight HBLP-1MLED-PT Pole Top Stanchion Mount light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures.
This Class 1 Division 1 & 2, Class 2 Division 1 & 2 pole top stanchion mount explosion proof light fixture provides 10,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.
HBLP-1MLED-PT Pole Top Stanchion | Ratings |
Lamp Type: LED | T5 Temperature Rating |
Dimensions: Light: 16" Diameter, 5" Thickness | Class 1 Division 1&2 Groups C and D |
Total Watts: 150W | Class 2 Division 1&2 Groups E,F,G |
Lumens: 10,000 | Class 3 Division 1&2 |
Voltage: Multi- 100-277 VAC, 50/60Hz | CSA Certified to C22.2 No.137-M81 |
Lighting Configuration: Flood Pattern | cETL Certified to UL844 and C22.2 Standards |
Mounting: Slip Fit Yoke Mount w/ Adjustable Bracket | |
Weight: 40lbs | |
U.L. Listing: Explosion Proof | |
Temp Rating: T5 -40C to +65C | Special Orders- Requirements |
Color Temp: 6000K, 70-CRI. | Contact us for special requirements |
Lamp Life: 60,000+ Hours |
