Class I, Div. I & II Explosion Proof LED Fixture - 10,000 Lumen - Temporary Manhole Mount

Jan. 24, 2013

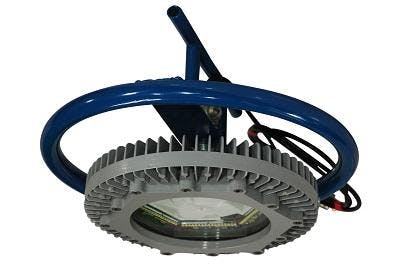

The Magnalight MMLP-1MLED Temporary Manhole Mount Light Fixture provides operators with a powerful and highly convenient alternative to traditional string or tank lights. LED technology, an innovative 21" man-way support bracket, and compact design, makes this lamp an excellent lighting solution for operators working within storage tanks, railcars, and other locations where entry is through a 21" man-hole opening.



This Class 1 Division 1 & 2, Class 2 Division 1 & 2 explosion proof light fixture provides 10,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. A special heat dissipating design in conjunction with advanced LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. This 16 inch diameter LED light is attached to a 21 inch supporting plate which allows the light fixture to hang inside the tank or railcar while the supporting plate rests on the lip of man-way opening.

This mounting system provides an extremely versatile lighting option for those working in confined spaces such as rail cars, storage tanks, ship tanks and the like where entry is through a 21" man-way opening.

MMLP-1MLED Manhole Mount LightRatings Lamp Type: LED T5 Temperature Rating Dimensions: 16" Diameter,  5" Thickness- 21" Man-Way Support Bracket Class 1 Division 1&2 Groups C and D Total Watts: 150W Class 2 Division 1&2 Groups E,F,G Lumens: 10,000 Class 3 Division 1&2 Groups E,F,G Voltage: Multi- 100-277 VAC, 50/60Hz cETL Certified to UL844 and C22.2 Standards Lighting Configuration: Flood Pattern Mounting: 21" Manway Entry Support Plate Weight: 41lbs U.L. Listing: Explosion Proof
Temp Rating: T5 -40C to +65C
Temp Rating: T4A -40C to +60C
Color Temp: 6000K, 70-CRI.
Beam Lux: 8500@ 1 Meter 1250@ 3 Meters
