Power Distribution - 45 KVA Transformer - 480V Three Phase to 120/208Y - 20A Breakers
MADE IN THE USA

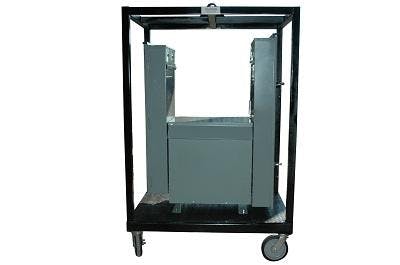

This Magnalight 45KVA Power Distribution Substation has a 100 amp three phase 480 wye main breaker panel and a 200 amp 120/208Y main breaker panel. Both panels are rated Nema 12 for use in areas with dust. Twenty 20 amp circuit breakers in the single phase panel.
The customer provides an SO cable that brings 480V three phase power to the 100 amp three phase 480 wye, 42 circuit main breaker panel. A 3 pole, 50 amp breaker protects the Nema 3R configured 45KVA transformer. The 480V three phase to 120/208Y 45KVA transformer delivers 120/208Y to the 200 amp main breaker, 42 circuit panel. This panel includes twelve single pole 20 amp curcuit breakers for the single phase.
MPD-45K-480V-20A Power Distribution Substation |
Line In: Three Phase 480 VAC with SO cable provided by customer | |
Disconnnect: Customer provided | |
Load Center: 1 X 3 phase, 100 amp NEMA12 panel w/ 42 circuits and 1 X 120/208Y, 200 amp NEMA 12 panel with 42 circuits | |
Breakers - 3 phase panel: 6 X 3-pole, 30 amp breakers and 1 3-pole, 50 amp breaker Breakers - 120/208Y panel: 20 X single pole, 20 amp breakers for outlets Transformer KVA: 45 KVA | |
Dimensions: W-48" X L-48" X H-55" | |
Frame: Powder coated/painted steel frame with diamond plate base | |
Transport: 8 inch locking polyurethane casters, forklift access and pick eye | |
Ground: Mechanical Ground | |
Weight: 650lbs | |
American Made |
