Explosion Proof - 500VA - 4 Receptacle - Transformer with 150 Watt LED Light - 120 VAC Secondary

Jan. 24, 2013

Made in the USA

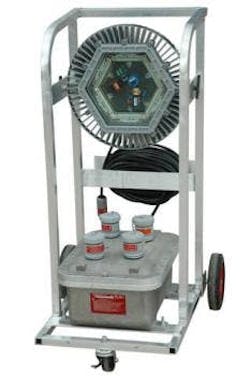

The Magnalight EPL-TX-500-4-1MLED explosion proof 500VA power transformer converts 220V 50/60Hz current to 120 VAC 50/60hz secondary output with optional 12 VAC, 12 VDC and 24 VDC configurations also available. This unit is cart mounted for easy mobility and is equipped with a 150 watt explosion proof LED light head for maximum convenience and versatility.

The EPL-TX-500-4-1MLED explosion proof power transformer from Magnalight is built to provide operators in hazardous locations with an effective and mobile method of stepping down single phase high primary voltages to safe and reliable 120 VAC 50/60hz, 12 VAC, or 12/24VDC current depending upon configuration. This unit doubles as a power distribution station as well, with four included explosion proof receptacles rated at 20 amps each. This compact power distribution transformer is designed for portability and convenience as well as durability and is mounted to a non sparking aluminum dolly cart with wheels for easy mobility.

This portable step down transformer features a 150 watt LED light head that provides 10,000 lumens of bright white light, four 2023 Class 1 Division 1 receptacles with twist lock operation to provide positive connections, a 500VA transformer, and a wheeled aluminum cart for easy movement of the unit about the workplace. Included with this combination explosion proof transformer/light/cart is 25 feet of SOOW cord equipped with a 20amp, 220v Plug. This unit is explosion proof approved Class 1 Div 1 and Class 2 Div 1.

The four outlets and standard output voltages of this step down transformer make it a popular choice for operating our 100 watt explosion proof drop lights and work lights. The included 150 watt LED light head provides a highly convenient and powerful light source that allows operators to immediately provide large scale illumination once the unit is connected to a power source.

EPL-TX-500-4-1MLED Explosion Proof Power Transformer Features/Ratings
Line In: 220V 50/60Hz Class 1 Division 1
Line Out: 4- 2023, Class 1, Div. 1 Receptacles 120V-20 amp AC 2023, Class 1, Division. 1 Receptacles
Wiring: 25' SOOW with 20amp, 220v Plug Class 2 Division 1
Dimensions: 30”-H x 14”-D x 24”- W 220VAC/ 20Amp Plug
Weight: 135lbs 4 Explosion Proof Receptacles
Mounting: Wheeled Aluminum Dolly Cart 10,000 Lumen, 150 Watt LED Light
Ratings: Class 1 Division 1 Class 2 Division 1 Explosion Proof cETL Certified to UL844 and C22.2 Standards
Transformer: 500VA
