Class 1 Division 2 Fluorescent LED Light for Corrosion Resistant Requirements (Saltwater) - Larson Electronics LLC

Jan. 28, 2013

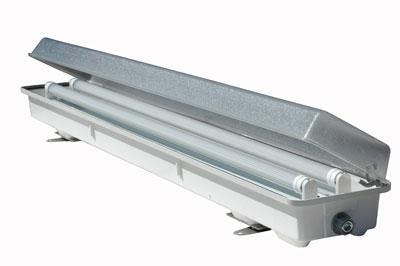

The Magnalight HALP-48-2L-LED Hazardous Area LED Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4A temperatue rating and is specifically designed to handle the rigors of wet and corrosive marine environments.

The HALP-48-2L-LED hazardous area LED light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant stainless steel latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. This fixture is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved.

The HALP-48-2L-LED also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications. This lamp offers the extreme durability, high efficiency and long lamp life of high power LEDs in a proven hazardous location fixture design.

Specifications / Additional Information

HALP-48-2L-LED Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class 1 Division 2, Groups A, B, C, D
Dimensions: W-8.25"  L-52"   H-7" UL 844
Weight:8 Lbs UL 1598A Marine Type (Salt water)
Total Watts: 48 watts California Title 24 Compliant
Voltage: 120V-60hz  220V-50hz  240V-60hz  277V-60hz
Lamp Life Expectancy: LED T-Series 50,000 Hours
Efficiency: LED T-Series 90 Lumens per Watt
Temp Range: T4A Rated -30 C to 85 C
Beam Angle: 150 degrees
Color Temp: 5300K- Special Orders- Requirements
Mounting: Flange type stainless steel Contact us for special requirements
Wiring Hub: 1/2 inch threaded
Warranty: YES- 3 Years*
U.L Approval: U.S Certificate  Canada Certificate
Minimum Operating Temp: -30 C
Maximum Case Temp: 90 C
*3 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement.
