480V 3 Phase to 120/208Y Temporary Power Station - 480V 3PH Disconnect Outdoor Rated - Steel Frame

Jan. 24, 2013

Made in the USA

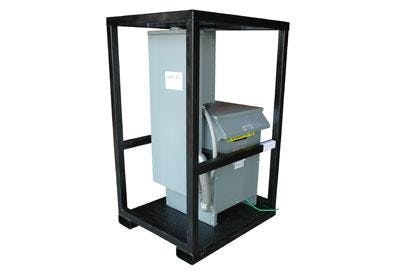

The Magnalight MGPD-SP-200-1D-45-2B heavy duty power transformer substation converts 480 VAC three phase electrical current to single phase 120/208Y AC. This unit provides operators the ability to safely tap into and distribute 480VAC power from a variety of sources including generators and direct grid power. This temporary power panel feeds two temporary services with 120/208Y single phase 100 amp power. This unit provides operators the ability to safely tap into and distribute 480VAC power from a variety of sources including generators and direct grid power.

The MGPD-SP-200-1D-45-2B heavy duty transformer provides a safe and effective way for operators in industrial settings to tap into and utilize power sources independently of the work area. This unit provides an effective power source for operators performing plant turnarounds, maintenance and cleaning in hazardous areas, equipment installations and repairs and any activities requiring an alternative to native power sources. This unit is designed to operate with 480 VAC which it then steps down to 120/208Y AC. This transformer makes 120/208Y AV available via two 100 amp breakers for each service connection.

MGPD-SP-200-1D-45-2B Power Transformer
Line In: 480 VAC Single Phase

Line Out: 120/208Y

Main Breaker: 200 amp

Breakers: 2 X 100A double pole 208 breakers and 10 X 20A 120V breakers

Protection: Fusible or non-fusible NEMA-3R Disconnect - 60A Fuses

KVA: 45

Dimensions: 30" Wide X36" Deep X 54" Tall

Frame: 2 inch 16 gauge square tubing frame w/ powder coat

Skid pockets (3X6X1/4" rectangular)

Lift eye

Mounting: Painted Steel Frame w Skid Pockets
