Class I, Div. II Fluorescent Light for Corrosion Resistant Requirements - 2' Lamps - Low Voltage - Larson Electronics LLC

Jan. 28, 2013

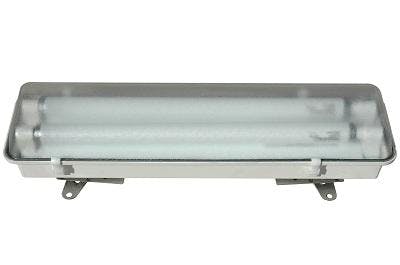

The Magnalight HALP-24-2L-LV Hazardous Area Fluorescent Light Fixture is U.S / Canada U.L. approved Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4C temperature rating and is specifically designed to handle the rigors of wet and corrosive marine environments.

The HALP-24-2L-LV hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant stainless steel latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. This fixture operates on 12-24 volts and is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved.

The HALP-24-2L-LV also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications. This fixture ideal for hazardous areas where corrosion resistance is mandatory and space limitations require a compact lighting solution.

Specifications / Additional Information

HALP-24-2L-LV Hazardous Area U.L. Ratings
UL Listings: United States - Canada Class 1 Division 2, Groups A, B, C, D
Dimensions: W-8.25 "   L-26 "   H-7" UL 844
Weight: 5 Lbs UL 1598A Marine Type (Salt water)

California Title 24 Compliant
Total Watts: 34 watts*
Voltage: 12-24 Volts
Total Lumens: STD-T8 Bulbs 2,400
Lamp Life Expectancy: STD-T8  Bulbs 24,000 Hours
Efficiency: STD-T8 Bulbs  70 Lumens per Watt
Operating Temp Range: T4A Rated -30 C to 70 C
Beam Angle: N/A Special Orders- Requirements
Color Temp: 3500K- Contact us for special requirements
Mounting: Flange type stainless steel
Wiring Hub: 1/2 inch threaded

U.L Approval: U.S Certificate  Canada Certificate

Meets US Coast Guard specifications.

*Wattage totals are lamps only and may vary with different lamps.
