31 Watt Class 1 Division 2 Low Voltage LED Light for Hazardous Location Areas

Jan. 24, 2013

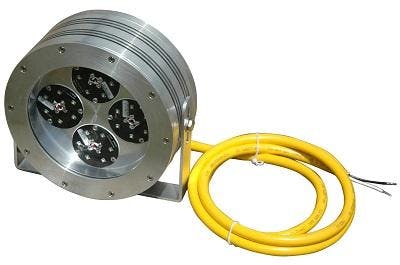

The HAL-31L-LV is a low voltage explosion proof lighting solution approved for Class 1 Division 2 environments and U.L. 1598 compliant for use in wet locations. This powerful LED light produces 2416 lumens, operates from 12 or 24 VDC, and is available in a variety of configurations to allow tailoring to the specific requirements of various applications.


The HAL-31L-LV is designed to provide a high output and ruggedly durable lighting solution for applications where Class 1 Division 2 compliance is required. This low voltage explosion proof light can be operated with either 12 or 24 volt DC current and includes 6 feet of connecting lead with standard two wire configuration. This light is constructed of precision machined aluminum for excellent strength and durability and is rated IP66 for ingress protection against dust and direct exposure to high pressure water spray.

The HAL-31L-LV is also available in a 30 degree spotlight beam configuration for distance and a 100 degree configuration for wide area illumination and has a cool white color temperature for maximum illumination. The high output, cool running operation, and good color rendering properties of this light make it an ideal replacement for older, bulkier, and less reliable metal halide and high pressure sodium lamps.

HAL-31L-LV Explosion Proof LEDHAL-31L-LV Ratings/Approvals Lamp Type: LED Class 1 Division 2 Groups A,B,C,D Dimensions: Lamp 6.9" Diam"- 2.9"-Depth | Bracket- 4.63"-H 7.25" W" CSA 22.2 No. 250.0 Weight: 4.5lb | 2.05 k g UL 1598 Watts: 31.6 W @ 12 VDC | 33.6 W @ 24 VDC IP66 Ingress Protection Voltage: 12-24 VDC T3 Temperature Rating Lumens: 2416 Lamp Life Expectancy: 100,000 Hours CRI: CW: 75 | NW : 75 | WW: 80 Amps: 2.64 A @12 VDC - 1.4 A @ 24 VDC
Light Color: CW: 6500K
Beam Type: 30° Spot or 100° Flood
Mounting: 1/4” - 20 Screws /Aluminum 1” Yoke
Temp Range: -40°C – +85°C
Wiring: 6Ft Lead | White: + Black: -
