16 Watts Class 1 Division 2 Light for Hazardous Location Areas - LED -24" Light

Jan. 24, 2013

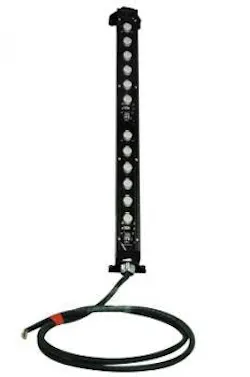

The Magnalight HAL-24-16W-LED is a low voltage explosion proof lighting solution approved for Class 1 Division 2 environments and U.L. 1598 compliant for use in wet locations. This powerful 24.9" long LED strip light produces 1208 lumens, operates from 12 or 24 VDC, and is suitable for a variety of applications.

The HAL-24-16W-LED is designed to provide a high output and ruggedly durable lighting solution for applications where Class1 Division 2 compliance is required. This low voltage explosion proof light can be operated with either 12 or 24 volt DC current and includes 6 feet of connecting lead with standard two wire configuration. This light is constructed of powder coated extruded aluminum for excellent strength and durability and is rated IP54 for protection against exposure to splashing water and limited dust ingress. These units are configured in a 24.9" long strip or "bar" profile for installation in locations where wide dispersal and a low profile is preferred. The high output, cool running operation, and good color rendering properties of this light make it an ideal replacement for older, bulkier, and less reliable HID and halogen light fixtures.

HAL-24-16W-LED Explosion Proof LEDHAL-24-16W-LED Ratings/Approvals Lamp Type: LED Class 1 Division 2 Groups A,B,C,D Dimensions: Lamp 24.90"-L 2.68" -W 1.69"- D CSA 22.2 No. 250.0 Weight: 1.4lb | 0.6 k g UL 1598 Watts: 16.8 W IP54 Ingress Protection Voltage: 12-24 VDC T3 Temperature Rating Lumens: 1208 Lamp Life Expectancy: 100,000 Hours CRI: 75 Amps: 1.3 A @12 VDC | 0.66 A @ 24 VDC
Light Color: 6500K
Beam Type: 100° Flood
Mounting: Standard Triangle End Brackets
Temp Range: -40°C – +85°C
Wiring: 6Ft Lead | White: + Black: -
