Class 1 Division 2 Light for Hazardous Location Areas - LED - 7 Watts

Jan. 24, 2013

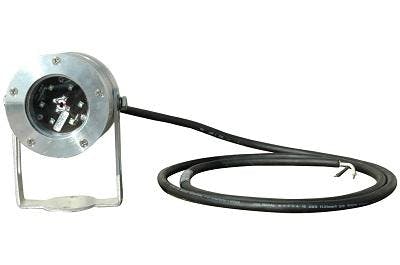

The Magnalight HAL-7W-LED is a low voltage explosion proof lighting solution approved for Class1 Division 2 Environments and U.L. 1598 compliant for use in wet locations. This powerful LED light produces 604 lumens, operates from 12 or 24 VDC, and is available in a variety of configurations to allow tailoring to the specific requirements of various applications.

The HAL-7W-LED is designed to provide a high output and ruggedly durable lighting solution for applications where Class1 Division 2 compliance is required. This low voltage explosion proof light can be operated with either 12 or 24 volt DC current and includes 6 feet of connecting lead with standard two wire configuration. This light is constructed of precision machined aluminum for excellent strength and durability and is rated IP66 for ingress protection against dust and direct exposure to high pressure water spray.

The HAL-7W-LED is available in a 30 degree spotlight beam configuration for distance and a 100 degree configuration for wide area illumination, and a cool white color temperature for maximum illumination. The high output, cool running operation, and good color rendering properties of this light make it an ideal replacement for older, bulkier, and less reliable incandescent and halogen lamps.

HAL-7W-LED Explosion Proof LEDHAL-7W-LED Ratings/Approvals Lamp Type: LED Class 1 Division 2 Groups A,B,C,D Dimensions: Lamp 3.47" Diam"- 4.50"-Depth 5.29" Height- w Bracket CSA 22.2 No. 250.0 Weight: 2.3 lb | 1.04 k g UL 1598 Watts: 7.9 W @ 12 VDC | 8.4 W @ 24 VDC IP66 Ingress Protection Voltage: 12-24 VDC T3 Temperature Rating Lumens: 604 - Scoptic Lumens: 1293 Lamp Life Expectancy: 100,000 Hours CRI: 75 Amps: 0.66 A @12 VDC | 0.35 A @ 24 VDC
Light Color: 6500K
Beam Type: 30° Spot or 100° Flood
Mounting: 1/4” - 20 Screws /Aluminum Yoke
Temp Range: -40°C – +85°C
Wiring: 6Ft Lead | White: + Black: -
