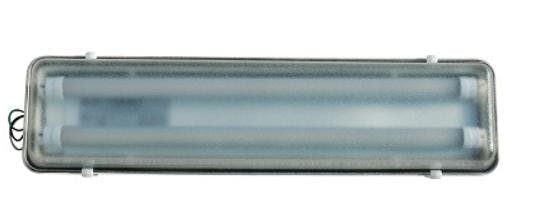

Class I, Division 2 LED Light - 2 foot, 2 lamp - Corrosion Resistant Construction (Saltwater)

Jan. 28, 2013

The Magnalight HALP-24-2L-LED Hazardous Area LED Light Fixture is U.S. / Canada U.L. approved Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4A temperature rating and ideal for open air hazardous locations where flammable chemical/petrochemical vapors may be occassionally encountered.



The HALP-24-2L-LED fixture is a 2 foot long, 2 lamp, UL listed Class 1 Division 2 Groups A, B, C and D hazardous area LED light and a good choice for use in applications where space is at a premium. This fixture is T4A temperature rated and comes standard with our high power and efficiency 15 watt LED lamps. This weatherproof fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant stainless steel latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion.

This fixture is UL 844 rated Class 1 Division II, Groups A, B, C, D approved and also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications. This fixture ideal for hazardous areas where corrosion resistance is mandatory and space limitations require a compact lighting solution.

HALP-24-2L-LED Hazardous AreaU.L. Ratings UL Listings: United States - Canada  Class 1 Division 2, Groups A, B, C and D Dimensions: W-8.25"  L-26"  H-7" UL 844  Weight: 5 LbsUL 1598A Marine Type California Title 24 Compliant  Total Watts: 30 watts Voltage: Multi- 120V-60hz  220V-50hz  240V-60hz  277V-60hz Low Voltage (Optional): 12-24V DC LED Lamp Life Expectancy: 50,000+ Hours Efficiency: 90 Lumens per Watt Operating Temp Range: T4A rated -30 C to 85 CMinimum Operating Temp: -30 CMaximum Case Temp: 90 C
Beam Angle: 150 degrees
Color Temp: 5300K- Color Rendering Index-75
Mounting: Flange type stainless steel
Wiring Hub: 3/4 inch threaded
Warranty: YES- 3 Years*

U.L Approval: U.S Certificate  Canada Certificate
