Emergency Backup Fluorescent Light for Corrosion Resistant Requirements (Saltwater) - T12HO Lamps

Jan. 28, 2013

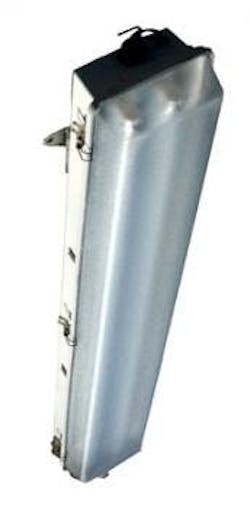

The Magnalight HALP-EMG-48-2L-T12HO Hazardous Area Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4C temperature rating and is specifically designed to handle the rigors of wet and corrosive marine environments.

The HALP-EMG-48-2L-T12HO hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant stainless steel latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion.

This fixture is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved. The HALP-EMG-48-2L-T12HO also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications.

HALP-EMG-48-2L-T12HO Hazardous AreaU.L. Ratings UL Listing: United States - Canada Class 1 Division 2, Groups A, B, C, D Dimensions: W-8.25 " L-52 " H-7" UL 844 Weight: 8 LbsUL 1598A Marine Type (Salt water) California Title 24 Compliant Total Watts: 96 watts* Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz Total Lumens: 8,100 Lamp Life Expectancy: 12,00 Hours Operating Temp Range: T4A Rated -30 C to 70 CMinimum Operating Temp: -30 CMaximum Case Temp: 90 C
Beam Angle: N/A
Color Temp: 4100K
Mounting: Flange type stainless steel
Wiring Hub: 1/2 inch threaded
U.L Approval: U.S Certificate Canada Certificate
