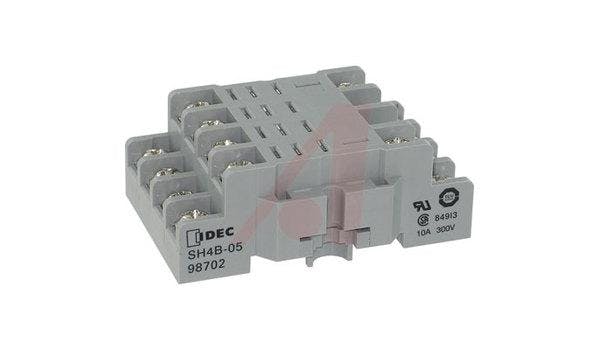

Socket, Relay; 14; 4; DIN Rail; 10 A; 100 Megohms Insulation, Resistance; M3.5

Relay and Timer SocketSnap-mount sockets are designed to mount on BNDN-1000 mounting rail. The built-in mounting clip eliminates mounting hardware and reduces mounting time by eighty percent. For spacing between adjoining sockets, use SA-406 DIN rail spacer. Spacers : 0.197"" in width. Spacing can be adjusted according to the amount of spacers added. To prevent sideward movement, use BNL-5 end clip at each end of socket row.To Mount: Place socket on mounting rail and press down.To Remove: Pull clip out with screwdriver and lift socket.

Mating Relay Series: RH4B

Hold Down Spring: SH4B-02F1

Hold Down Clip: SFA-101 (top notch), SFA-202 (side notch)
14 pins, insulation resistance 100 Megohms (Min.)

Screw Size: M3.5  |  Mounting: DIN Rail  |  Current Rating: 10A  |  Current, Rating: 10A  |  Number of Pins: 14  |  Dielectric Strength: 2000 VAC, 1 Minute  |  Insulation, Resistance: 100 Megohms (Min.)  |  For Use With: For Use With RH Series Relay  |  Mounting Type: DIN Rail  |  Number of Contacts: 14  |  Type: Blade  |  Standards: UL Recognized, CSA Certified, CE Marked  |  Number of Poles: 4  |
