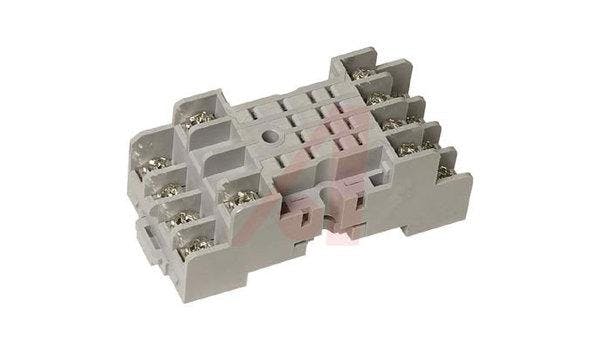

Socket, Relay; 7A; 14-Blade; 4-Pole; DIN Rail Snap/Surface-Mount; M3 Screw Term
Feb. 20, 2013
Related To: Allied Electronics & Automation
Relay and Timer Socket, Dielectric Strength 2000 VACSnap-mount sockets are designed to mount on BNDN-1000 mounting rail. The built-in mounting clip eliminates mounting hardware and reduces mounting time by eighty percent. For spacing between adjoining sockets, use SA-406 DIN rail spacer. Spacers : 0.197"" in width. Spacing can be adjusted according to the amount of spacers added. To prevent sideward movement, use BNL-5 end clip at each end of socket row.To Mount: Place socket on mounting rail and press down.To Remove: Pull clip out with screwdriver and lift socket. Mating Relay Series: RY4S, RY42S, RU4S, RU42S, RM2S, *RY2KS (*latching relay) Hold Down Spring: SY4S-51F1 for all relays;SY4S-51F3 for RY2KS only Hold Down Clip: SFA-101 (top notch), SFA-202 (side notch) for all relays and timers
Non-Polarized Green LED Indicator Solder-Free Construction (Lead-Free) No Internal Wires Mechanical Flag Indicator Manual Latching Lever With Color Coding For AC or DC Coil Snap-On Marking Plate Cadmium-Free Contacts Contact Rating: 6 A, 4PDT; 10 A, DPDT Number of Contacts: 14 | Relay Type: RU4S, RU42S, RY4S, RY42S, RY2KS, RY2LS, RM2S | Mounting: DIN Rail/Panel Surface | Current Rating: 6A | Current, Rating: 7A | Mounting Type: DIN Rail Snap?Surface-Mount | Number of Poles: 4 | Receptacle Style: 14-Blade | Brand/Series: SY Series | Timer Type: GT5Y | Termination: Screw | Type: Blade | Terminal Type: M3 Screw |
