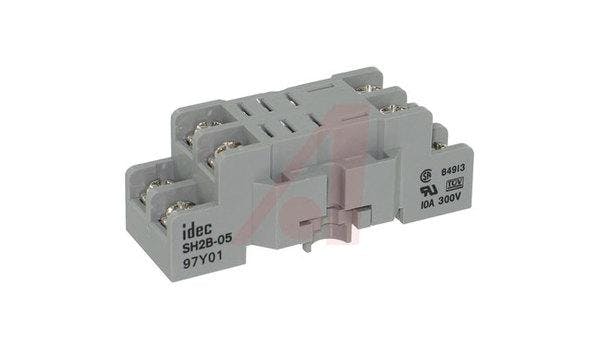

Socket, Relay; M3.5 Screw; 8-Blade; 2; 10 A; DIN Rail Snap/Surface-Mount;RH2B

Feb. 20, 2013
Relay and Timer Socket, Dielectric Strength 2000 VACSnap-mount sockets are designed to mount on BNDN-1000 mounting rail. The built-in mounting clip eliminates mounting hardware and reduces mounting time by eighty percent. For spacing between adjoining sockets, use SA-406 DIN rail spacer. Spacers : 0.197"" in width. Spacing can be adjusted according to the amount of spacers added. To prevent sideward movement, use BNL-5 end clip at each end of socket row.To Mount: Place socket on mounting rail and press down.To Remove: Pull clip out with screwdriver and lift socket.
  • Mating Relay Series: RH2B
  • Hold Down Spring: SY4S-02F1
  • Hold Down Clip: SFA-101 (top notch), SFA-202 (side notch)
    100 Megohms minimum insulation resistance and UL 94V-0 material grade.
  • Termination: Screw  |  Terminal Type: M3.5 Screw  |  Number of Contacts: 8  |  Current, Rating: 10A  |  Relay Type: RH2B  |  Number of Poles: 2  |  Type: Blade  |  Brand/Series: SH Series  |  Mounting Type: DIN Rail Snap?Surface-Mount  |  Receptacle Style: 8-Blade  |  Current Rating: 10A  |  Mounting: DIN Rail/Panel Surface  |
