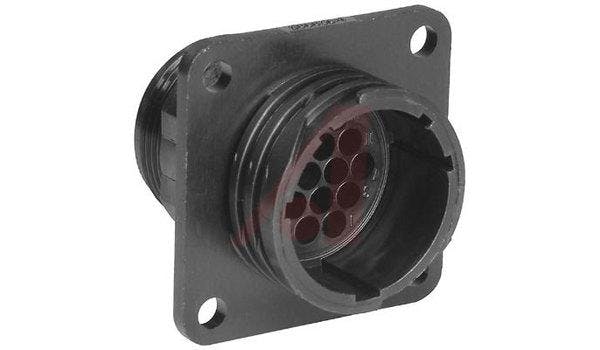

Connector, CPC; 16; Receptacle; Wire; 17; All Plastic; 15/16 - 20 UNEF-2A
Feb. 12, 2013
Related To: Allied Electronics & Automation
CPC Connectors, Thermoplastic Housing Material, All Plastic Shell TypeCPC Connectors provide a substantial savings in weight and cost through the use of a plastic shell and a wide variety of pin and socket contacts. The various sizes and densities are supplied unloaded (without contacts). Recognized under the component program of Underwriters Laboratories, Inc. for 250 V service. UL File No. E28476. CSA Certified File No. LR 7189.
Series 1. Standard density, multimate contacts for normal unsealed operations. Materials: 94 V-1 rated, heat stabilized, fire resistant, self extinguishing black thermoplastic. Contacts not included — order as a separate item. Note: Maximum wire insulation dia. is 0.100 (2.54) except for arrangement 23-24 which will accept insulation dia. of 0.150 (3.81) max. These connectors use Series 1 contacts located on page .Square flange panel attachment method. RoHS compliant, ELV compliant.Application: Commercial | Thickness, Panel: 0.125" | Diameter, Insulation: 0.1" | Type: Panel Socket | Brand/Series: Series 1 | Flammability Rating: UL94-V0 | Housing Type: Plastic | Mounting Type: Flanged | Number of Contacts: 16 | Primary Type: Circular Plastic Connector | Insert Arrangement: 17-16 | Color: Black | Angle: Straight | Gender: Receptacle | Shell Size: 17 | Diameter, Mounting Hole: 0.15" | Material, Housing: Thermoplastic | Mating Type: Threaded |
