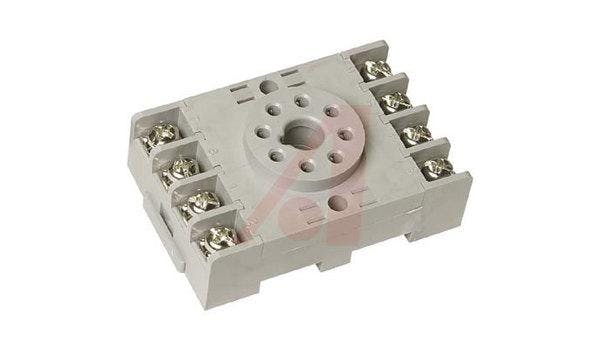

Socket, Relay; 8; 2; Snap on Rail Mount; 300 V; 10 A; 100 Megohms;2000 VAC; RR

Socket, 100 Megohms (Min.) Insulation Resistance, Snap on Rail MountSnap-mount sockets are designed to mount on BNDN-1000 mounting rail. The built-in mounting clip eliminates mounting hardware and reduces mounting time by eighty percent. For spacing between adjoining sockets, use SA-406 DIN rail spacer. Spacers : 0.197"" in width. Spacing can be adjusted according to the amount of spacers added. To prevent sideward movement, use BNL-5 end clip at each end of socket row.To Mount: Place socket on mounting rail and press down.To Remove: Pull clip out with screwdriver and lift socket.

Mating Relay Series: RR2P

Mating Timer Series: RTE-P1, GT3 (8-pin), GT5P and GE1A

Hold Down Spring: SR2B-02F1 (for RR2P)

Hold Down Clip: SFA-202 (for timers only, except GE1A)

Relay Type: RR  |  Brand/Series: SR Series  |  Standards: UL Listed, CSA Certified, CE Approved  |  Dielectric Strength: 2000VAC  |  Voltage Rating: 300V  |  Mounting Type: Snap on Rail Mount  |  Current Rating: 10A  |  Termination: Screw Clamp  |  Mounting: DIN Rail/Panel Surface  |  For Use With: For Use with RR Series Relays  |  Number of Contacts: 8  |  Number of Pins: 8  |  Type: Octal  |  Insulation Resistance: 100 Megohms (Min.)  |  Voltage, Rating: 300V  |  Number of Poles: 2  |
