LoRaWAN-Enabled Smart Sensor

May 6, 2022

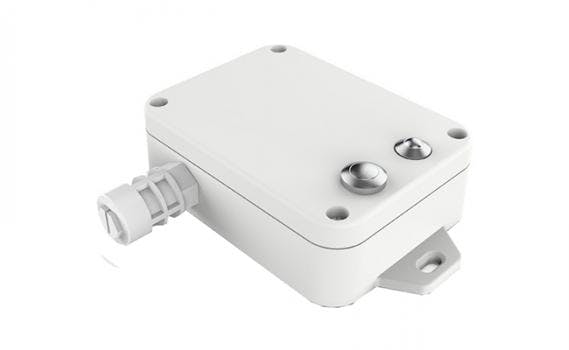

The L54110 LoRaWAN-Enabled Smart Sensor from H2O Degree enables tighter thermostat control.

The L54110 LoRaWAN-Enabled Smart Sensor is a temperature/humidity sensor that adds functionality to existing networks comprising H20 Degree battery-powered meters, sensors, and controllers. Their LoRaWAN-equipped devices use LoRaWAN Class A secure wireless 915 MHz technology. This long-range, open-protocol network facilitates line-of-sight, bi-directional communications over six miles.


The entire LoRaWAN network is connected to the H20 Degree Cloud Server via an LT1005 Ethernet Gateway or LIT2010 cellular modem. The Smart Metering wireless data acquisition system and PC-based software provide users with reporting and alerts to react quickly.


Lowering the cost of submetering installation is the reduced need for repeaters. The device has an operating temperature range of -4 to 122°F (-20 to 50°C) and relative humidity of up to 90%.

  • The H2O Degree LoRaWAN temperature & humidity sensor is used for environmental monitoring and is compatible with H2O Degree’s LoRaWAN open protocol wireless network
  • Access temperature and humidity data in indoor applications
  • Discover and react to any heating or cooling issues that could impact your perishables or delicate equipment
  • Installs anywhere indoors with ease, and take advantage of built-in magnets for placement on magnetic surfaces
  • Reduce operational upkeep with extended battery life and small footprint
  • Customize report time frames for alerts when and how you want them
  • Quick and easy set-up in minutes. Send on-demand data packets by pressing a button
