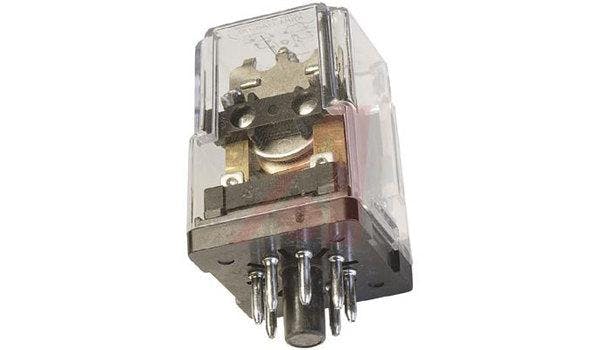

Relay;E-Mech;Gen Purp;DPDT;Cur-Rtg 10A;Ctrl-V 120AC;Vol-Rtg 120/28AC/DC;Plug-In - Allied Electronics Inc

General Purpose Industrial Relays, 10 Amps, 120 VAC, 2250 OhmsRuggedly constructed relay offered with silver contacts, code “Y”, rated 5 amps; and silver-cadmium oxide contacts, code “G” rated 10 amps. Contact arrangements are available up through 3 form (3PDT). Expected life exceeds 100,000 operations at rated load. Mechanical life is 10 million operations, minimum. Enclosed in a clear dust cover. UL recognized under file E22575. Low cost version of the KRP relay. KRPA-N Series has an indicator lamp wired in parallel with its coil, making this model ideal for voltage or current monitoring applications. Silver-cadmium oxide contacts are rated 10 amps. KRPA-N specifications are identical to those of the KRPA-G series.

Multi-Contact Arrangement

Octal Plug Termination

Clear Dust Cover

Hold-Down Spring for KRPA and KRPA-N Will Accommodate Machine Screws or Rivets; for Use with Flush Mount Chassis Sockets

Tyco Part Number: 3-1393104-2  |  Voltage, Control: 120VAC  |  Relay Type: Electro Mechanical  |  Current, Rating: 10A  |  Function: General Purpose  |  Termination: Plug-In  |  Dimensions: 1.922 in. L x 1.469 in. W x 1.375 in. H  |  Mounting Type: Socket  |  Brand/Series: KRPA Series  |  Voltage, Rating: 240VAC  |  Current Rating: 10A  |  Material, Contact: Silver Cadmium Oxide  |  Resistance, Coil: 2250Ohms  |  Number of Pins: 8  |  Contact Form: DPDT  |  Standards: UL, CSA, RoHS  |
