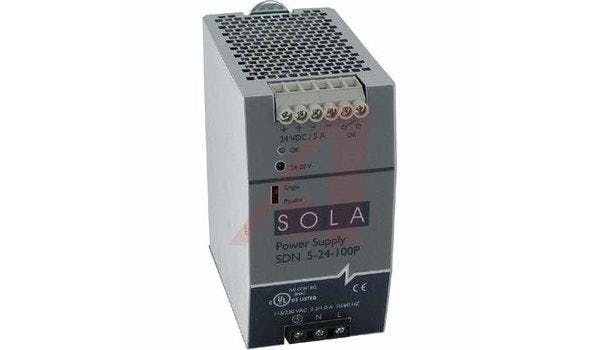

Power Supply;24VDC@5A; 115/230VAC In; Enclosed;DIN Rail;Industrial;SDN Series

The SDN DIN Rail power supply products provide industry leading performance. Sag immunity, transient suppression and noise tolerant, the SDN series ensures compatibility in demanding applications. Power factor correction to meet European directive, hazardous location approvals and optional redundant accessories allow the SDN series to be used in a wide variety of applications. Wide operation temperature range, high tolerance to shock and vibration and reliable design make the SDN series the definition of DC power quality.

Power Factor Correction — Per EN61000-3-2

Class 1, Zone 2 Hazardous Locations

Auto Select 115/230 VAC, 50/60 Hz Input

Highly Efficient — >90% Switching Technology

DC OK Signal

Adjustable Output Voltage

–10 to 60°C Operation without Derating

Indefinite Short Circuit, Overvoltage and Overtemperature Protection

Powers High Inrush Loads without Shutdown or Foldback

Parallel Capability Standard on All Units

Rugged Metal Case and DIN Connector

Improved Metal Mounting Clip Withstands Up to 40 G of Shock

Narrow Width on Rail for Space Critical Applications

Single-Phase Models Meet SEMI F47 Sag Immunity

SDN2.5-24-100P and SDN4-24-100LP Meet NEC Class 2

Five-Year Warranty

RoHS Compliant Product Is Available, Contact Your Local Allied Sales Representative

Type: Industrial  |  Mounting Type: DIN Rail  |  Temperature, Operating, Minimum: -10°C  |  Output: 24VDC@5A  |  Width: 2.56in.  |  Voltage, Output: 24VDC  |  Height: 4.88in.  |  Operation: Switching  |  Current, Rating: 2.2?1A  |  Primary Type: AC-DC  |  Special Features: Parallelable, PFC  |  Temperature, Operating, Maximum: 60°C  |  Brand/Series: SDN Series  |  Voltage, Rating: 115?230VAC  |  Frequency: 47 to 63Hz  |  Power, Output: 120W  |  Voltage, Input: 85-264VAC  |  Configuration: Enclosed  |  Number of Outputs: 1  |
