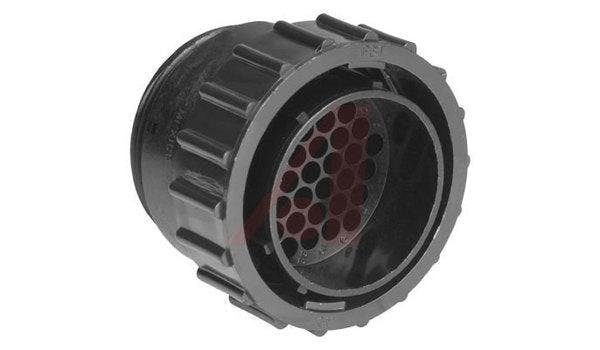

Connector, CPC; 37; Plug; Wire; 23; AllPlastic; 1-3/8 in. - 18 UNEF-2A; Black
March 7, 2013
Related To: Allied Electronics & Automation
Connector, Plug,, Number of Positions 37, Plastic Shell, Thermoplastic Housing, Black ColorCPC Connectors provide a substantial savings in weight and cost through the use of a plastic shell and a wide variety of pin and socket contacts. The various sizes and densities are supplied unloaded (without contacts). Recognized under the component program of Underwriters Laboratories, Inc. for 250 V service. UL File No. E28476. CSA Certified File No. LR 7189. Series 1 . Standard density, multimate contacts for normal unsealed operations. Materials: 94 V-1 rated, heat stabilized, fire resistant, self extinguishing black thermoplastic. Contacts not included — order as a separate item. Note: Maximum wire insulation dia. is 0.100 (2.54) except for arrangement 23-24 which will accept insulation dia. of 0.150 (3.81) max.Application: Commercial | Primary Type: Circular Plastic Connector | Gender: Plug | Mating Type: Threaded | Color: Black | Insert Arrangement: 23-37 | Shell Size: 23 | Flammability Rating: UL94-V0 | Material, Housing: Thermoplastic | Brand/Series: Series 1 | Type: Cable Plug | Special Features: Reverse Gender | Housing Type: Plastic | Mounting Type: Free Hanging | Angle: Straight | Number of Contacts: 37 |
