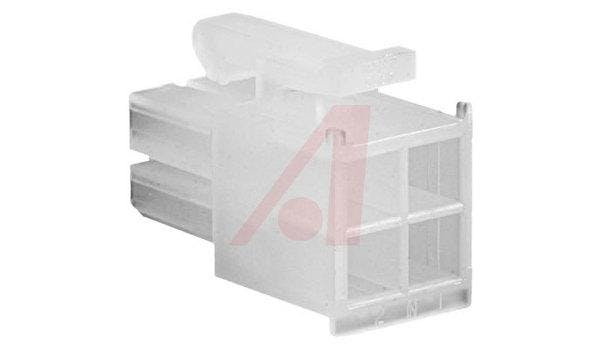

The Molex Mini-Fit family of connectors is designed for higher current/higher density applications which require design flexibility for wire-to-wire and wire-to-board configurations. Mini-Fit is ideal for power applications up to 12.0 A per circuit. The core attributes of the Mini-Fit family include: Fully isolated terminals, positive housing locks, low engagement forces and polarized housings and receptacles. Mini-Fit is UL Recognized, CSA approved and TUV Licensed. All components are lead-free and RoHS compliant.Number of Contacts: 4 | Temperature, Operating: -40 to +105;deg;C | Color: Natural | Length, Overall: 0.378;quot; | Number of Rows: 2 | Pin Spacing: 0.165;quot; | Brand/Series: Mini-Fit Jr.;trade;/5557 Series | Flammability Rating: UL94V-2 | Primary Type: Interconnect System | Type: Cable Socket | Angle: Straight | Material, Housing: Nylon 6/6 | Termination: Crimp | Agency Approvals: CSA, UL, TUV |
