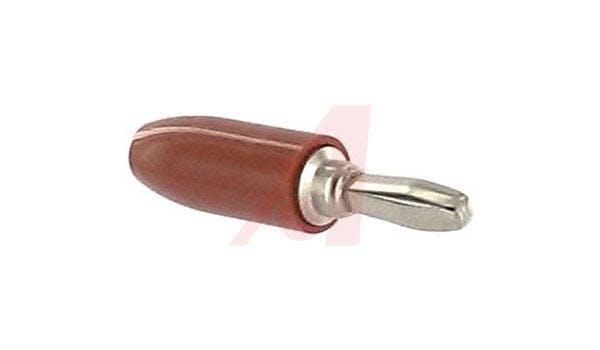

Banana Plug; Plug; 15 A; Red; Brass; Nickel Silver; 3500 V (RMS) (Min.)

Insulated Solderless Tapered Handle, Banana Plug Connector Type, 15 A Current RatingsBanana Plug, Insulated Solderless Tapered Handle, 15 A, Red, Brass, Nickel Silver, 3500 V (RMS) (Min.)

For standard 0.166"" banana jack. Tapered insulated nylon handle.

Connect with wire up to 16-gauge.

Nickel-plated brass body with nickel silver plug spring.

Current: 15 A. Contact Resistance: 0.010 ohms.

Insulation Material: Nylon (Handle)  |  Current, Rating: 15A  |  Insulation Type: Insulated  |  Color: Red  |  Voltage, Rating: 3500 V (RMS) (Min.)  |  Termination: Solder  |  Material, Spring: Nickel Silver  |  Diameter, Mounting Hole: 0.161"  |  Material, Body: Brass  |  Diameter, Terminal: 0.175in.  |  Length, Terminal: 0.531in.  |  Contact Plating: Nickel  |  Primary Type: Banana  |  Type: Plug  |  Height: 0.875in.  |
