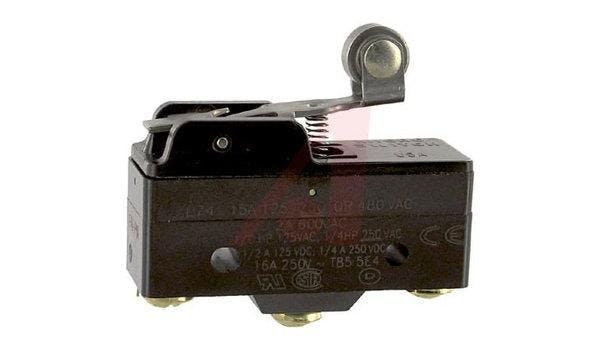

Switch, Standard, Basic, SPDT, 15 Amps,6 Operating Force, Screw Terminals

March 8, 2013
5 A, SwitchesBZ/BA Series Standard Basic Switches are used for simple or precision on/off application needs. DT Series Standard Basic Switches consist of two independent single-pole double throw circuits in one housing actuated by one actuator. The terminals are separated by a non-conductive shield to reduce shorting.Specifications
  • Operating Force as Low as 4 Oz.
  • Sensitive Differential Travel as Low as 0.0002"
  • Power Load Switching Capabilities Up to 25 A
  • Motor Load Capability Up to 2 HP @ 250 VAC
  • Momentary or Maintained Contact Options
  • Variety of Actuating Options
  • Optional Sealed Plungers
  • UL Recognized, CSA Certified (25 Amp Version)
  • CE and ENEC (Except 25 Amp Version)
  • Temperature Rating: -32 to +71°C  |  Material, Casing: High Grade Phenolic  |  Mounting Hole Size: 0.14"  |  Force, Operating: 6.00Oz.  |  Type: Basic  |  Contact Form: SPDT  |  Standards: CE Marked, CSA Certified, UL Recognized  |  Termination: Screw  |  Actuator Type: Roller Lever  |  Current, Rating: 15A  |  Voltage, Rating: 125VAC  |  Mounting Type: Mounting holes will accept pins or screws of 0.139 in. maximum diameter on 1.000 in. plus or minus 0.002 centers.  |
