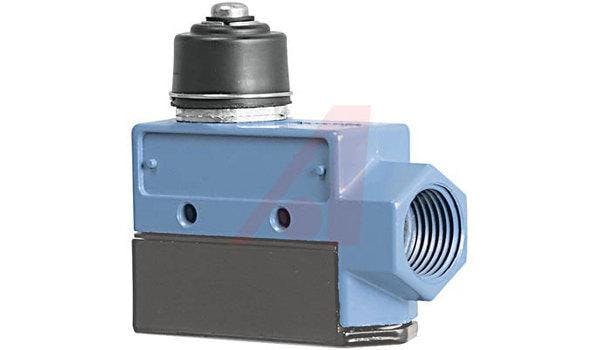

Enclosed Switch, Top Plunger Actuator, 9 to 24 Operating ForceEnclosed basic switches are known for high precision and low cost. The BZE6 line is the most popular enclosed basic switch line used in industry today.FeaturesMomentary or Maintained Contact Cast Zinc Housing Side or Flange Mount Options Gold Contacts and Low Temp (–40°C)
Specifications #6 Mounting Screws, Typical UL Recognized, File #E12252 CSA Certified, File #LR41372 Sealing: E6 Style (NEMA 1), V6 Style (NEMA 1,3) Operating Temperature: –25° to +160°F BZE6 Series Are CE Approved Actuator Type: Plunger | Contact Form: SPDT | Number of Positions: 2 | Standards: UL Recognized, CSA Certified | Type: Limit | Termination: Screw terminals and 0.5 in - 14NPT conduit inlet | Brand/Series: E6 Series | Case Material: Zinc Die-Cast | IP Rating: IP66 | Temperature Rating: -32 to +71°C | Mounting Type: Side Mount | Material, Casing: Zinc Die-Cast | Number of Poles: 1 | Current, Rating: 0.5A | Force, Operating: 9 to 24 Oz. |
