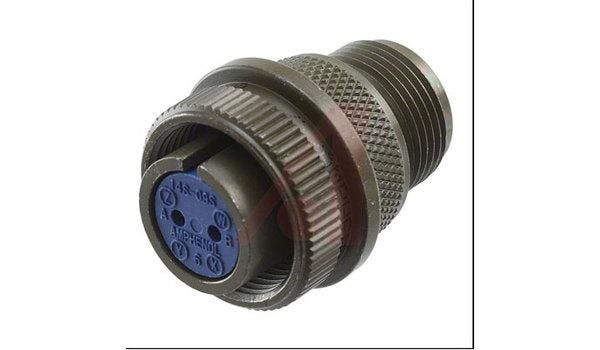

connector comp,shell only,metal circular,str plug,solid bkshl,size 14s,black fin
March 8, 2013
Related To: Allied Electronics & Automation
97 Series Solder Type Circular Mating Connector, Plug, -55 to +125 °CMedium to heavy weight cylindrical Durable, field-proven design Environmental resistant Single key?keyway polarization Threaded coupling, hard dielectric inserts Non-rotating contacts Intermateable and intermountable with existing Alternate insert positioning High temperature and potting constructions Special plating finishes including black and green zinc alloy Thermocouple arrangements available
MIL-C-5015 style, provides the interconnection solution for low cost. Shell components are fabricated from high grade aluminum alloy to provide strength and environmental protection. Connector components are fabricated from high grade aluminum alloy, with a conductive cadmium plate finish and an olive drab chromate after-treatment. Some cable clamps are a zinc alloy with an olive drab?green chromate finish. Contacts are silver plated with pre-tinned solder cups Mating Type: Threaded | Shell Size: 14S | Agency Approvals: UL/CSA | Class: A | Primary Type: 5015 Commercial | Brand/Series: 97 Series | Finish, Housing: Black Zinc | Angle: Straight | Strain Relief: Solid | Type: Plug Shell Only | Housing Type: Metal | Application: Commercial | Mounting Type: Free Hanging | Material, Housing: Aluminum Alloy |
MIL-C-5015 style, provides the interconnection solution for low cost. Shell components are fabricated from high grade aluminum alloy to provide strength and environmental protection. Connector components are fabricated from high grade aluminum alloy, with a conductive cadmium plate finish and an olive drab chromate after-treatment. Some cable clamps are a zinc alloy with an olive drab?green chromate finish. Contacts are silver plated with pre-tinned solder cups
